Specifications

AIMS SKU A0177366
Brand Tsubaki
Model Number RS35
Chain Number #35
Maximum Allowable Load kN (kgf) 2.16 (220)

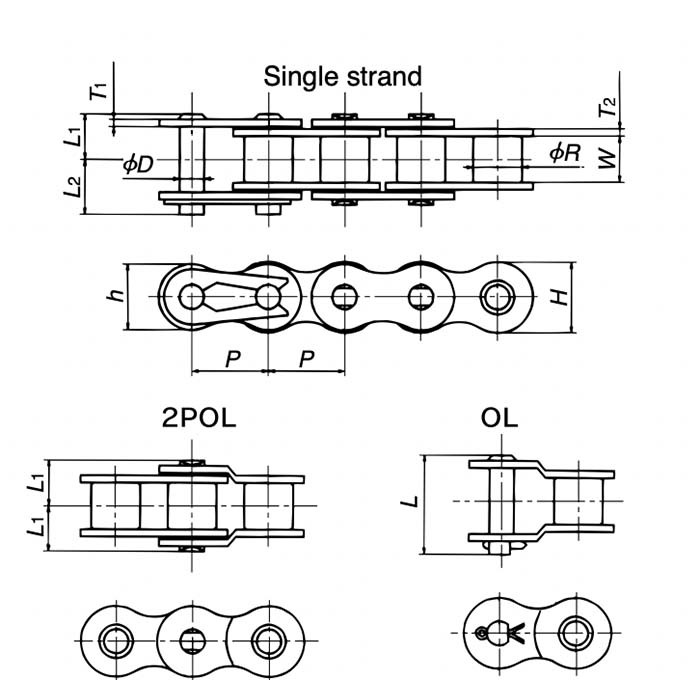

Transverse Pitch (C) 10.1
Chain Strand Single
Pin Length (L1+L2) 12.7
Dimensions (L1) 5.85
Dimensions (L2) 6.85
Offset Pin Length (L) 13.5
Pin Type Riveting
ANSI Standard Min.Tensile Strength kN (kgf) 7.9 (806)
Tsubaki Minimum Tensile Strength kN (kgf) 9.81 (1000)
Tsubaki Average Tensile Strength kN (kgf) 11.3 (1150)
Approximate Mass kg/m 0.33
