Description

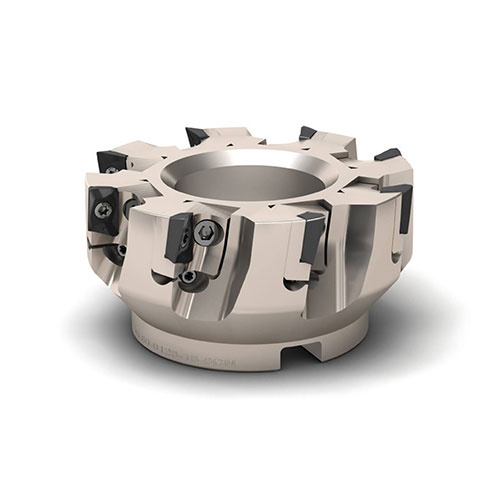

Turbo 12 Milling Cutter (Arbor) - With Adjustable Cassettes

  • For Arbor.
  • Arbor shank type.
  • General purpose, larger depth.
  • 12 mm insert size.
  • Maintains high tolerances and optimum precision.
  • Extremely flexible and reliable.
  • Coated & hardened cutter body.

About Turbo Square Shoulder Milling Cutter

  • Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
  • These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
  • Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
  • Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.
  • Cutter range 20-250 mm (0.75-8 inch).
  • Max depth of cut 11 mm (0.433 inch).
  • Recommended slotting depth of cut 6 mm (0.236 inch).
  • Insert corner radii range 0.4-6.3 mm (0.016-0.248 inch).

Specifications

  • AIMS SKU A0118863
  • Brand Seco
  • Model Number 02706936
  • Barcode Number 6936027000102
  • Designation R220.69-0125-12-8CN
  • Contact Surface Diameter Machine Side (DCSFMS) mm 90
  • Functional Length (LF) mm 63
  • Cutting Diameter (DC) mm 125
  • Peripheral Effective Cutting Edge Count (ZEFP) 8
  • Thread Diameter Size (TDZ) 0
  • Connection Bore Diameter (DCB) mm 40
  • Depth Of Cut Max-feed Direction End (apmxe) Mm 7
  • Depth Of Cut Max-feed Direction Side (apmxs) Mm 11
  • Helical Interpolation Hole Diameter Max (cmax )mm 248
  • Helical Interpolation Hole Diameter Min (cmin) Mm 237.5
  • Cutting Edge Angle-feed Direction Side (kaprs) Deg 90.0 deg
  • Ramping Angle Max (rmpx) Deg 0.5 deg
  • Type Turbo 12 Milling Cutter
  • Shank Type Arbor

Video

SKU: A0118863

Seco 63 x 125mm Turbo 12 Square Shoulder Milling Cutter 8 Teeth - (Arbor) R220.69-0125-12-8CN

Turbo 12 Milling Cutter (Arbor) - Adjustable Cassettes

$2,103.20
RRP $2,629.00
SAVE $525.80 (20%)
