Description

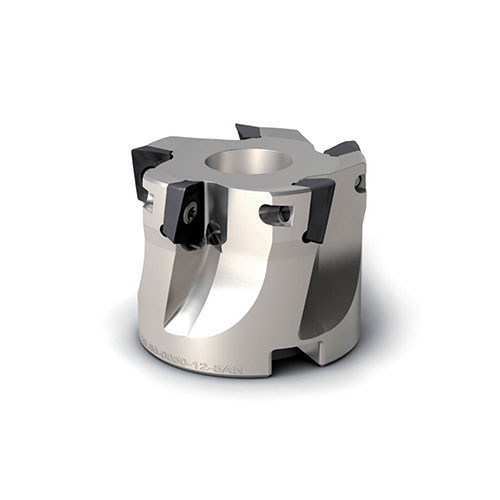

Turbo 12 Milling Cutter (Arbor) - With Through Coolant supply

  • For Arbor.
  • Arbor shank type.
  • General purpose, larger depth.
  • 12 mm insert size.
  • Maintains high tolerances and optimum precision.
  • Extremely flexible and reliable.
  • Coated & hardened cutter body.

About Turbo Square Shoulder Milling Cutter

  • Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
  • These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
  • Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
  • Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.
  • Cutter range 20-250 mm (0.75-8 inch).
  • Max depth of cut 11 mm (0.433 inch).
  • Recommended slotting depth of cut 6 mm (0.236 inch).
  • Insert corner radii range 0.4-6.3 mm (0.016-0.248 inch).

Specifications

  • AIMS SKU A0118846
  • Brand Seco
  • Model Number 02677572
  • Barcode Number 77572026000101
  • Designation R220.69-0050-12-5AN
  • Helical Interpolation Hole Diameter Max (cmax )mm 98
  • Rotational Speed Max (rpmx) Rpm 14800
  • Ramping Angle Max (rmpx) Deg 2.0 deg
  • Cutting Edge Angle-feed Direction Side (kaprs) Deg 90.0 deg
  • Cutting Edge Angle-feed Direction End (kapre) Deg 90.0 deg
  • Rake Angle Axial (gamp) Deg 8.0 deg
  • Rake Angle Orthogonal (gamo) Deg -5.8 deg
  • Rake Angle Radial (gamf) Deg -5.8 deg
  • Helical Interpolation Hole Diameter Min (cmin) Mm 87.5
  • Contact Surface Diameter Machine Side (DCSFMS) mm 47
  • Depth Of Cut Max-feed Direction Side (apmxs) Mm 11
  • Depth Of Cut Max-feed Direction End (apmxe) Mm 7
  • Connection Bore Diameter (DCB) mm 22
  • Depth Of Key Way (C) mm 6.3
  • Peripheral Effective Cutting Edge Count (ZEFP) 5
  • Cutting Diameter (DC) mm 50
  • Functional Length (LF) mm 40
  • Keyway Width (KWW) mm 10.4
  • Type Turbo 12 Milling Cutter
  • Shank Type Arbor

Video

SKU: A0118846

Seco 40 x 50mm Turbo 12 Square Shoulder Milling Cutter 5 Teeth - (Arbor) R220.69-0050-12-5AN

Turbo 12 Milling Cutter (Arbor) - Coolant Supply

$807.84
RRP $1,009.80
SAVE $201.96 (20%)
