Description

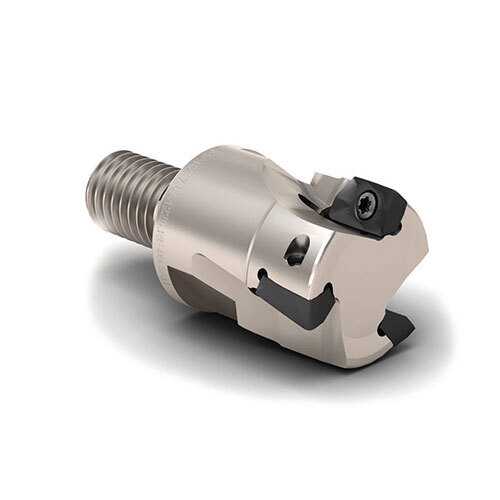

Turbo 12 Milling Cutter (Shank - Combimaster)- With Through Coolant supply

  • With Shank.
  • Combimaster shank type.
  • General purpose, larger depth.
  • 12 mm insert size.
  • Maintains high tolerances and optimum precision.
  • Extremely flexible and reliable.
  • Coated & hardened cutter body.

About Turbo Square Shoulder Milling Cutter

  • Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
  • These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
  • Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
  • Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.
  • Cutter range 20-250 mm (0.75-8 inch).
  • Max depth of cut 11 mm (0.433 inch).
  • Recommended slotting depth of cut 6 mm (0.236 inch).
  • Insert corner radii range 0.4-6.3 mm (0.016-0.248 inch).

Specifications

  • AIMS SKU A0118820
  • Brand Seco
  • Model Number 02676828
  • Barcode Number 76828026000100
  • Designation R217.69-1020.RE-12-2AN
  • Helical Interpolation Hole Diameter Max (cmax )mm 38
  • Rotational Speed Max (rpmx) Rpm 23200
  • Ramping Angle Max (rmpx) Deg 8.0 deg
  • Cutting Edge Angle-feed Direction Side (kaprs) Deg 90.0 deg
  • Cutting Edge Angle-feed Direction End (kapre) Deg 90.0 deg
  • Rake Angle Axial (gamp) Deg 2.8 deg
  • Rake Angle Orthogonal (gamo) Deg -11.8 deg
  • Rake Angle Radial (gamf) Deg -11.8 deg
  • Helical Interpolation Hole Diameter Min (cmin) Mm 27.5
  • Contact Surface Diameter Machine Side (DCSFMS) mm 18
  • Depth Of Cut Max-feed Direction Side (apmxs) Mm 11
  • Depth Of Cut Max-feed Direction End (apmxe) Mm 7
  • Thread Diameter Size (TDZ) M10
  • Wrench Size (SW) 15
  • Peripheral Effective Cutting Edge Count (ZEFP) 2
  • Shank Diameter (DMM) mm 10
  • Connection Mounting Torque (CMTQ) nm 40
  • Cutting Diameter (DC) mm 20
  • Functional Length (LF) mm 28
  • Type Turbo 12 Milling Cutter
  • Shank Type Combimaster

Video

SKU: A0118820

Seco 10 x 20mm Turbo 12 Square Shoulder Milling Cutter 2 Teeth - Combimaster (Shank) R217.69-1020.RE-12-2AN

Turbo 12 Milling Cutter (Shank - Combimaster) - Coolant

$432.96
RRP $541.20
SAVE $108.24 (20%)
