Description

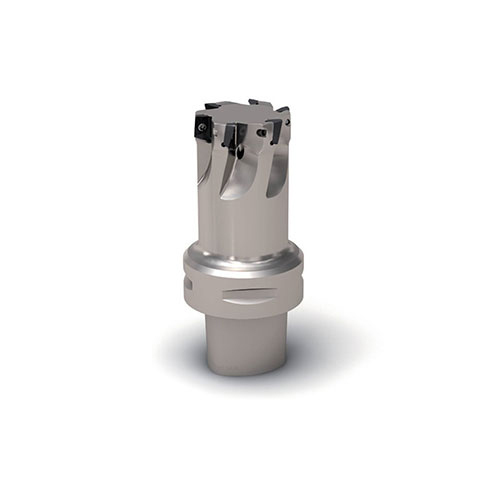

Turbo 12 Milling Cutter (Shank - Seco-Capto) - With Through Coolant supply

  • With Shank.
  • Seco-Capto shank type.
  • General purpose, larger depth.
  • 12 mm insert size.
  • Maintains high tolerances and optimum precision.
  • Extremely flexible and reliable.
  • Coated & hardened cutter body.

About Turbo Square Shoulder Milling Cutter

  • Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
  • These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
  • Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
  • Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.
  • Cutter range 20-250 mm (0.75-8 inch).
  • Max depth of cut 11 mm (0.433 inch).
  • Recommended slotting depth of cut 6 mm (0.236 inch).
  • Insert corner radii range 0.4-6.3 mm (0.016-0.248 inch).

Specifications

  • AIMS SKU A0118840
  • Brand Seco
  • Model Number 02677616
  • Barcode Number 77616026000102
  • Designation C5-R217.69-040-12-4AN

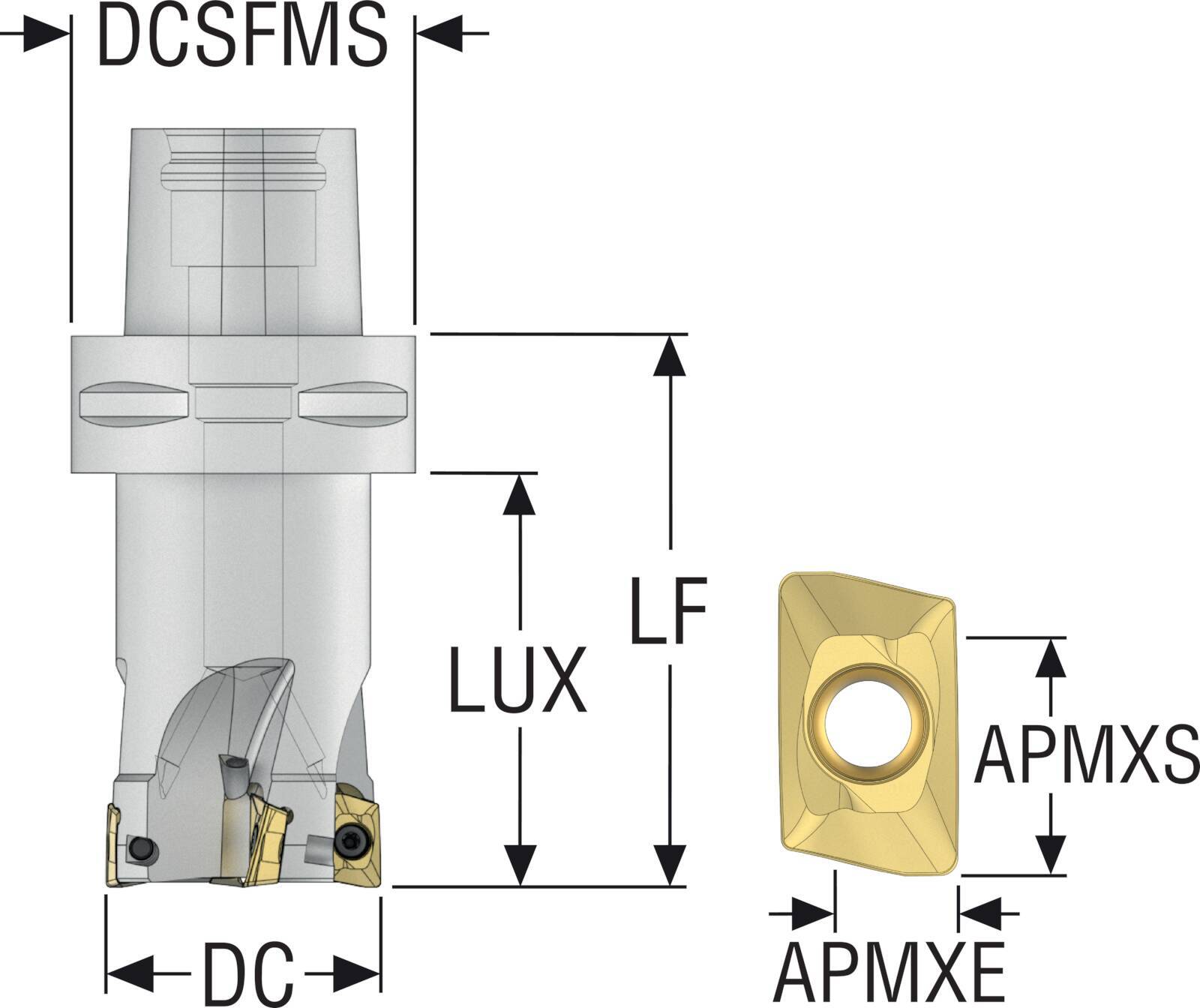

  • Contact Surface Diameter Machine Side (DCSFMS) mm 50
  • Functional Length (LF) mm 80
  • Cutting Diameter (DC) mm 40
  • Peripheral Effective Cutting Edge Count (ZEFP) 4
  • Thread Diameter Size (TDZ) _
  • Connection Bore Diameter (DCB) mm _
  • Depth Of Cut Max-feed Direction End (apmxe) Mm 7
  • Depth Of Cut Max-feed Direction Side (apmxs) Mm 11
  • Helical Interpolation Hole Diameter Max (cmax )mm 78
  • Helical Interpolation Hole Diameter Min (cmin) Mm 67.5
  • Cutting Edge Angle-feed Direction Side (kaprs) Deg 90.0 deg
  • Ramping Angle Max (rmpx) Deg 2.5 deg
  • Type Turbo 12 Milling Cutter
  • Shank Type Seco-Capto

Video

SKU: A0118840

Seco 80 x 40mm Turbo 12 Square Shoulder Milling Cutter 4 Teeth - Seco-Capto (Shank) C5-R217.69-040-12-4AN

Turbo 12 Milling Cutter (Shank Seco-Capto) - Coolant Sup

$787.60
RRP $984.50
SAVE $196.90 (20%)
