Description

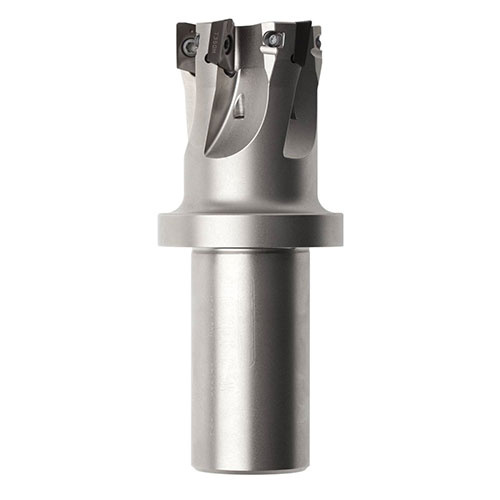

Turbo 12 Milling Cutter (Shank - Seco-Weldon) - With Through Coolant supply

  • With Shank.
  • Seco-Weldon shank type.
  • General purpose, larger depth.
  • 12 mm insert size.
  • Maintains high tolerances and optimum precision.
  • Extremely flexible and reliable.
  • Coated & hardened cutter body.

About Turbo Square Shoulder Milling Cutter

  • Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
  • These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
  • Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
  • Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.
  • Cutter range 20-250 mm (0.75-8 inch).
  • Max depth of cut 11 mm (0.433 inch).
  • Recommended slotting depth of cut 6 mm (0.236 inch).
  • Insert corner radii range 0.4-6.3 mm (0.016-0.248 inch).

Specifications

  • AIMS SKU A0118842
  • Brand Seco
  • Model Number 02676814
  • Barcode Number 76814026000103
  • Designation R217.69-2532.3S-12-4AN

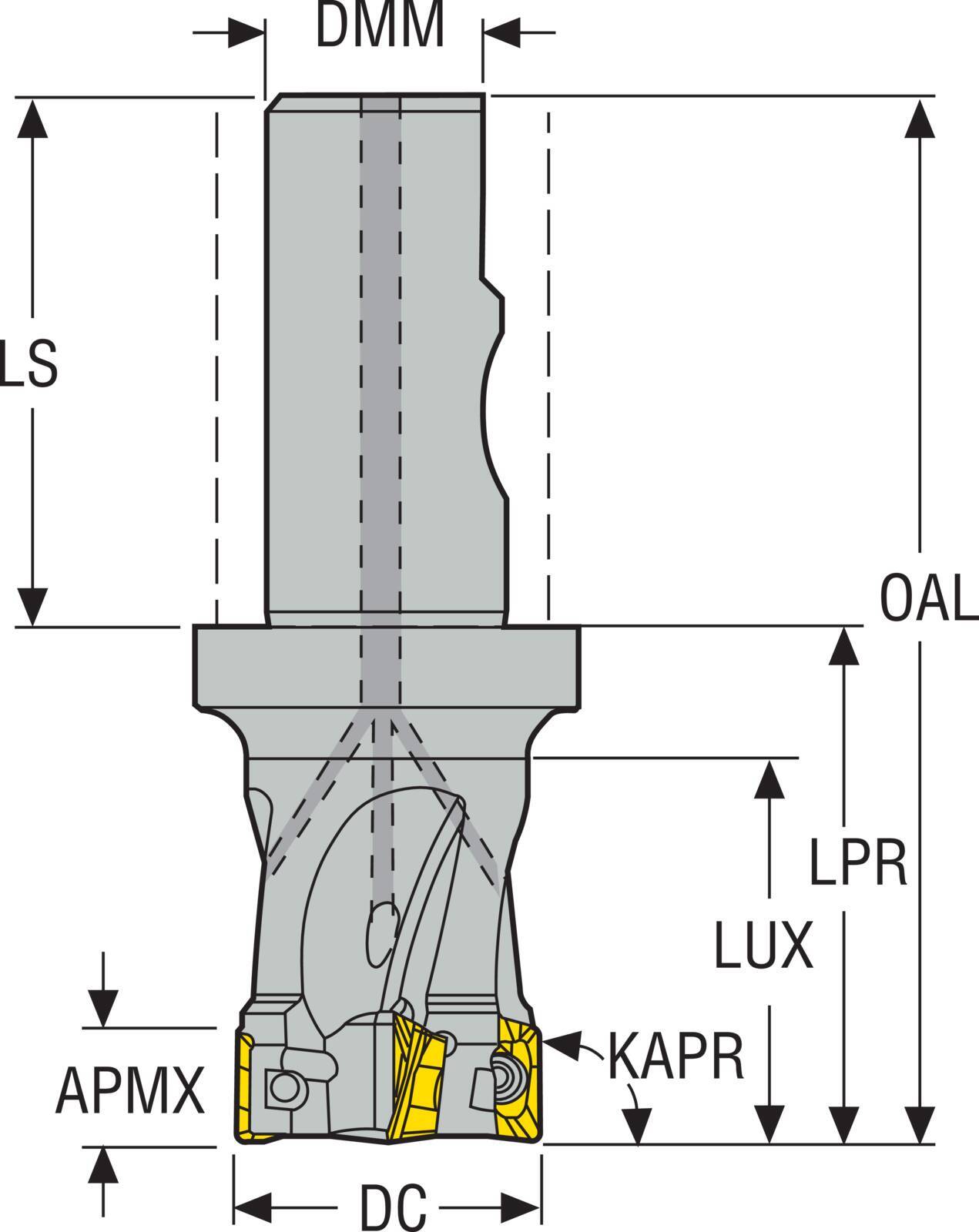

  • Contact Surface Diameter Machine Side (DCSFMS) mm 0
  • Functional Length (LF) mm 0
  • Cutting Diameter (DC) mm 32
  • Shank Length (LS) mm 56
  • Shank Diameter (DMM) mm 25
  • Overall Length (OAL) mm 110
  • Peripheral Effective Cutting Edge Count (ZEFP) 4
  • Thread Diameter Size (TDZ) 0
  • Connection Bore Diameter (DCB) mm 0
  • Depth Of Cut Max-feed Direction End (apmxe) Mm 7
  • Depth Of Cut Max-feed Direction Side (apmxs) Mm 11
  • Helical Interpolation Hole Diameter Max (cmax )mm 62
  • Helical Interpolation Hole Diameter Min (cmin) Mm 51.5
  • Cutting Edge Angle-feed Direction Side (kaprs) Deg 90.0 deg
  • Ramping Angle Max (rmpx) Deg 3 deg
  • Type Turbo 12 Milling Cutter
  • Shank Type Seco-Weldon

Video

SKU: A0118842

Seco 25 x 32mm Turbo 12 Square Shoulder Milling Cutter 4 Teeth - Seco-Weldon (Shank) R217.69-2532.3S-12-4AN

Turbo 12 Milling Cutter (Shank - Seco-Weldon) - Coolant

$595.76
RRP $744.70
SAVE $148.94 (20%)
