Description

Turning Insert 516 Grade (TPMM)

516 grade.

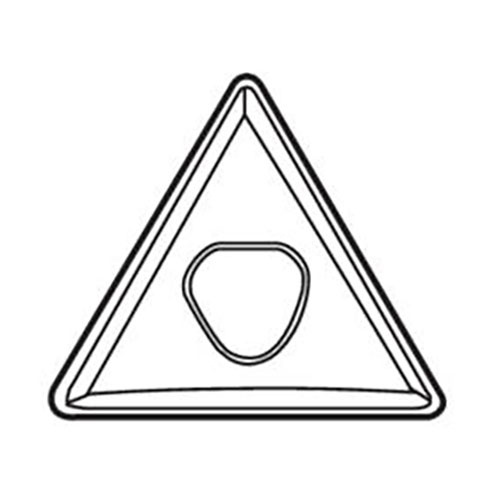

T, Insert Shape Code (SC).
13, Insert Seat Size Code (SSC).

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
Supporting inserts of different shapes, sizes, and thicknesses.
We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0121907

Brand Seco

Model Number 00011865

Barcode Number 11865000001008

Designation TPMM160304-46,516

Cutting Edge Count (CEDC) 3

Insert Hand (IH) Neutral

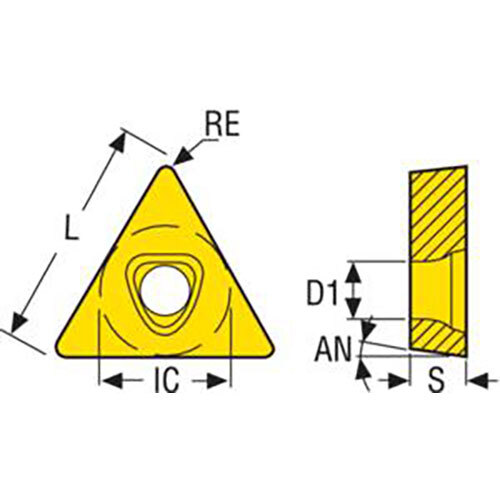

Cutting Edge Effective Length (LE) mm 15.6

Insert Thickness (S) mm 3.18

Corner Radius (RE) mm 0.4

Insert Seat Size Code (SSC) 16

Insert Shape Code (SC) T

Inscribed Circle Diameter (IC) mm 9.52

Clearance Angle Major (an) Deg 11.0 deg

Insert Included Angle (epsr) Deg 60.0 deg

Theoretical Cutting Edge Length (L) mm 16.5

Type Turning Insert
Grade 516
Insert Hand (IH) Neutral
Insert Shape Code (SC) T
