Turning Insert 883 Grade (TPMM) - SECO

Description

Turning Insert 883 Grade (TPMM)

883 grade.
T, Insert Shape Code (SC).
13, Insert Seat Size Code (SSC).

About 883 Grade

Carbide uncoated.
Relatively hard and still tough uncoated micrograin grade for machining of titanium in roughing applications and also suitable for superalloys.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
Supporting inserts of different shapes, sizes, and thicknesses.
We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0121927

Brand Seco

Model Number 00009125

Barcode Number 9125000001008

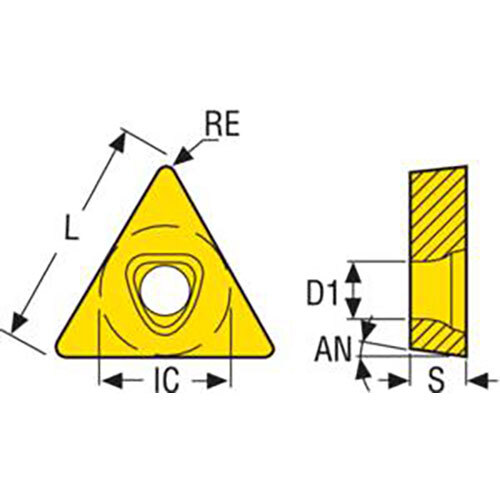

Designation TPMM160304-46,883

Grade Type Carbide Uncoated

Cutting Edge Count (CEDC) 3

Insert Hand (IH) Neutral

Cutting Edge Effective Length (LE) mm 15.6

Insert Thickness (S) mm 3.18

Corner Radius (RE) mm 0.4

Insert Seat Size Code (SSC) 16

Insert Shape Code (SC) T

Inscribed Circle Diameter (IC) mm 9.52

Clearance Angle Major (an) Deg 11.0 deg

Insert Included Angle (epsr) Deg 60.0 deg

Theoretical Cutting Edge Length (L) mm 16.5

Type Turning Insert
Grade 883
Insert Hand (IH) Neutral
Insert Shape Code (SC) T
