Turning Insert 890 Grade (TPGN) - SECO

Description

Turning Insert 890 Grade (TPGN)

890 grade.

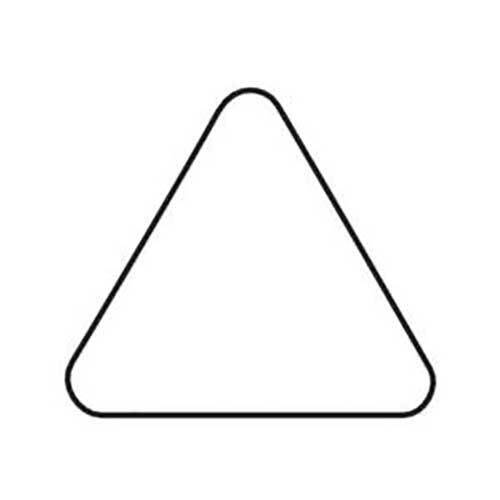

T, Insert Shape Code (SC).
16, Insert Seat Size Code (SSC).

About 890 Grade

Carbide uncoated.
High hardness uncoated micrograin grade maintaining good toughness intended for superalloys and titanium can also be applied in other materials.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
Supporting inserts of different shapes, sizes, and thicknesses.
We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0121934

Brand Seco

Model Number 74053361

Barcode Number 53361740001002

Designation TPGN160304F,890

Grade Type Carbide Uncoated

Cutting Edge Count (CEDC) 3

Insert Hand (IH) Neutral

Cutting Edge Effective Length (LE) mm 16.1

Insert Thickness (S) mm 3.18

Corner Radius (RE) mm 0.4

Insert Seat Size Code (SSC) 16

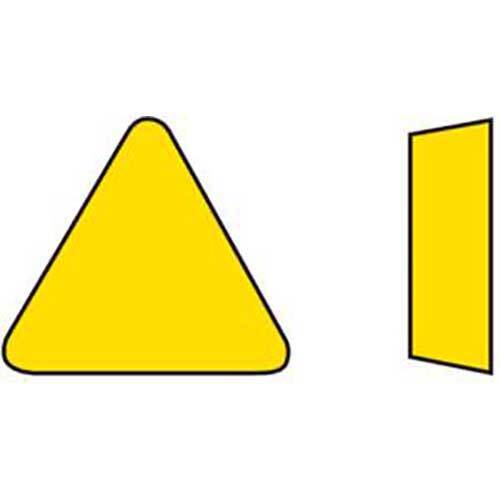

Insert Shape Code (SC) T

Inscribed Circle Diameter (IC) mm 9.52

Clearance Angle Major (an) Deg 11.0 deg

Insert Included Angle (epsr) Deg 60.0 deg

Theoretical Cutting Edge Length (L) mm 16.5

Type Turning Insert
Grade 890
Insert Hand (IH) Neutral
Insert Shape Code (SC) T
