Description

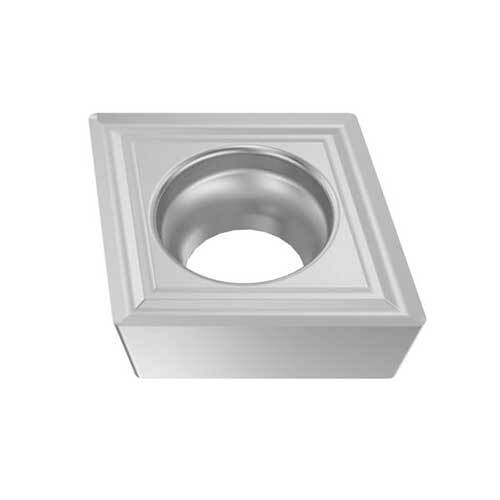

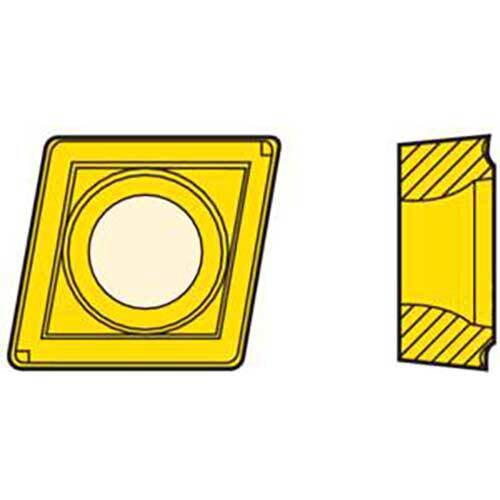

Turning Insert CCMT Insert Style - M3 7° Grade TM1501

TM1501 Insert Grade

Duratomic® grade.
The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.
Complements in mixes of steel and stainless steel turning.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M3 Chipbreaker Programme

First choice for medium-rough machining and also the most versatile Seco chipbreaker.
In most cases, it is the only chipbreaker needed. Offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
Recommended machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm. (f = 0.006-0.020 in/rev, ap = 0.020-0.200 inch)

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
