Description

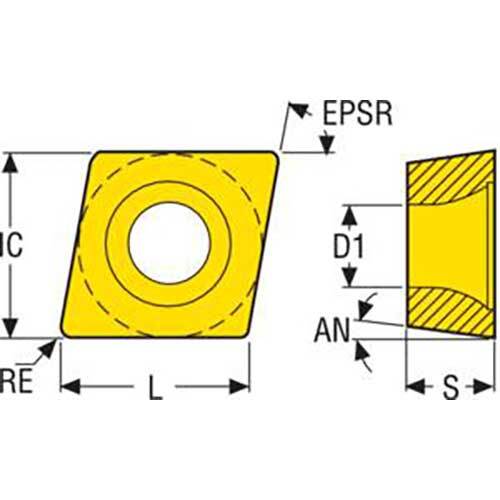

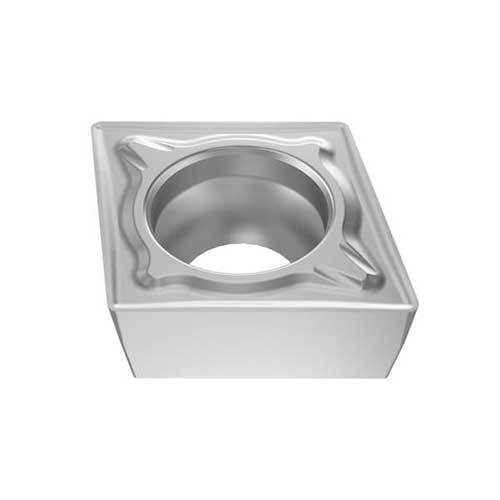

Turning Insert CCMT Insert Style - M5 7° Grade TM2501

TM2501 Insert Grade

Duratomic® grade.
A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.
First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

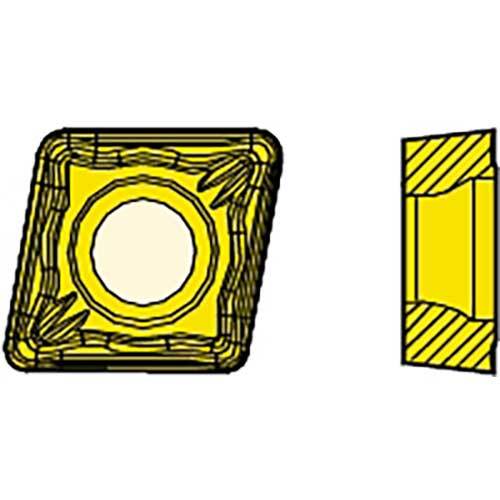

M5 Chipbreaker Programme

The choice for roughing by means of double-sided inserts.
Intended for demanding operations at high feed rates in steel. stainless steel and cast iron.
Combines high edge strength with comparatively low cutting forces.
Recommended machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.
(f = 0.012-0.028 in/rev,ap = 0.060-0.280 inch).

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
