Specifications
- AIMS SKU A0116802
- Brand Seco
- Model Number 00096859
- Barcode Number 96859000001008
- Designation CNGG120402-MF1 CP500
- Grade CP500

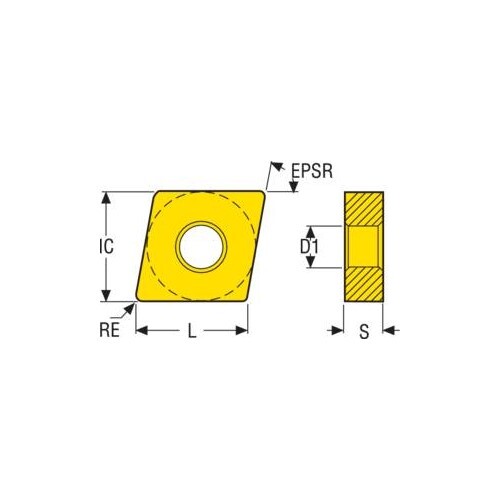

- Insert Thickness (S) mm 4.76
- Corner Radius (RE) mm 0.2
- Insert Shape Code (SC) C
- Inscribed Circle Diameter (IC) mm 12.7
- Clearance Angle Major (an) Deg 0.0 deg
- Fixing Hole Diameter (d1) Mm 5.2
- Insert Included Angle (epsr) Deg 80.0 deg
- Theoretical Cutting Edge Length (L) mm 12.9
- Chipbreaker Programme MF1
- Type Turning Insert
- Insert Grade Grade CP500
- Insert Style CNGG
SKU: A0116802

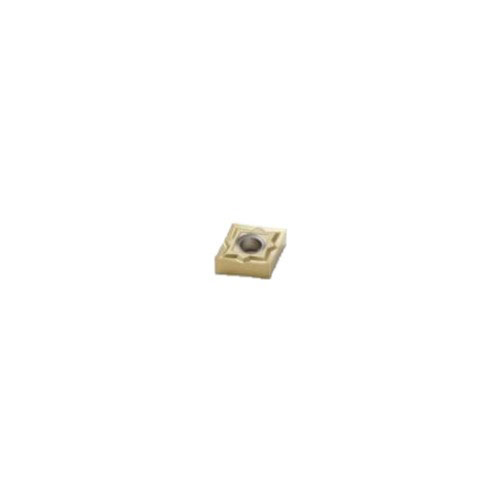

Seco Turning Insert C Shape Code 4.76 x 0.2 x 12.7mm G Insert Type - MF1 Grade CP500 ± 0.13/± 0.025mm Tolerance CNGG120402-MF1,CP500 - Pack of 10
Turning Insert CNGG Insert Style - MF1 Grade CP500
$333.66
