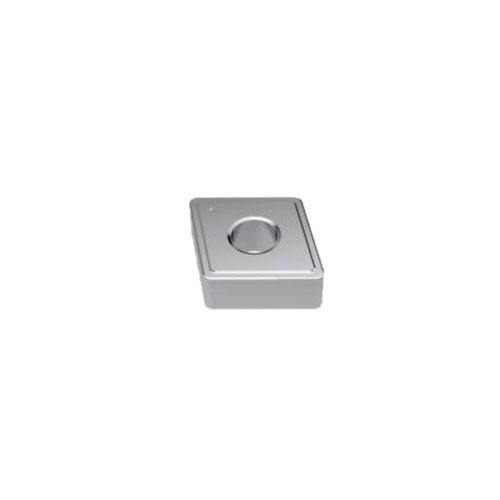

Turning Insert CNMA Insert Style - MR9 Grade TK0501 - SECO

Description

Turning Insert CNMA Insert Style - MR9 Grade TK0501

C shape code.
A insert type, with a hole, no chipbreaker.
TK0501 insert grade.

TK0501 Insert Grade

Duratomic® grade.
An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MR9 Chipbreaker Programme

The strongest chipbreaker intended for cast iron.
The negative chamfers makes it very suitable for high feeds in interrupted cuts and still with very reliable action in cast irons.
Intended machining range: f = 0,2-1,0 mm/rev ap = 1,0-12mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0116905

Brand Seco

Model Number 03072949

Barcode Number 72949030001007

Designation CNMA120412-MR9 TK0501

Grade TK0501

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 4

Insert Hand (IH) Neutral

Cutting Edge Effective Length (LE) mm 11.67

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 1.19

Insert Seat Size Code (SSC) 12

Insert Shape Code (SC) C

Inscribed Circle Diameter (IC) mm 12.7

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 5.2

Insert Included Angle (epsr) Deg 80.0 deg

Theoretical Cutting Edge Length (L) mm 12.9

Chipbreaker Programme MR9

Type Turning Insert
Insert Grade Grade TK0501
Insert Style CNMA
