Turning Insert CNMG Insert Style - M4 Grade TK1501 - SECO

Description

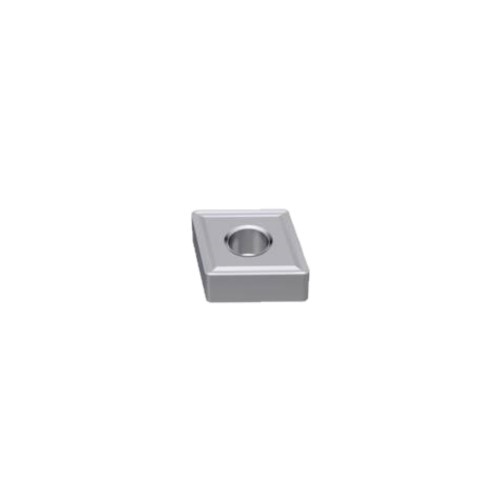

Turning Insert CNMG Insert Style - M4 Grade TK1501

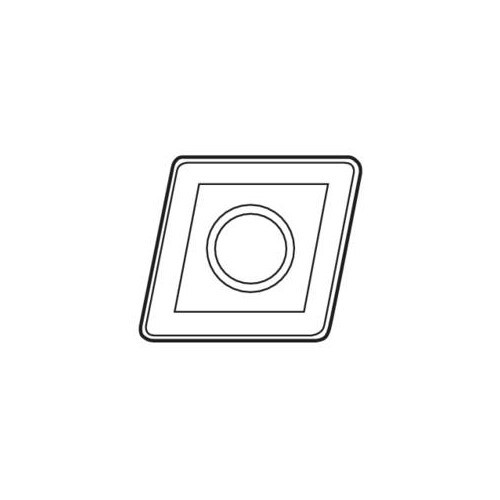

C shape code.
G insert type, with hole and chip breaker on both faces.
TK1501 insert grade.

TK1501 Insert Grade

Duratomic® grade.
A highly wear-resistant grade for cast irons in general as well as in steels.
The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M4 Chipbreaker Programme

Chipbreaker intended for cast iron.
A positive rake angle with a narrow T-land gives low cutting forces.
First choice for cast iron machining at high speeds.
Indicative machining range: f = 0,1-0,7 mm/rev, ap = 0,2-0,7 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0116987

Brand Seco

Model Number 03064483

Barcode Number 64483030001007

Designation CNMG120412-M4 TK1501

Grade TK1501

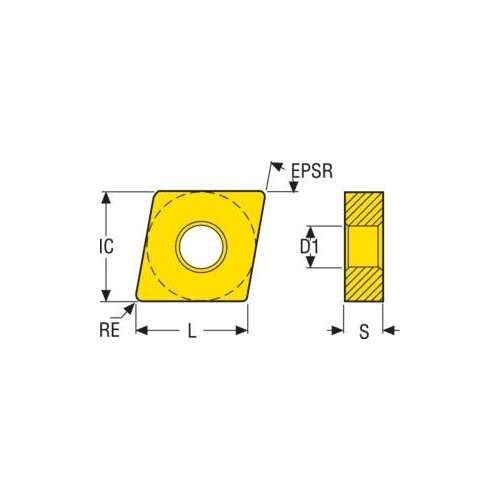

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 1.2

Insert Shape Code (SC) C

Inscribed Circle Diameter (IC) mm 12.7

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 5.2

Insert Included Angle (epsr) Deg 80.0 deg

Theoretical Cutting Edge Length (L) mm 12.9

Chipbreaker Programme M4

Type Turning Insert
Insert Grade Grade TK1501
Insert Style CNMG
