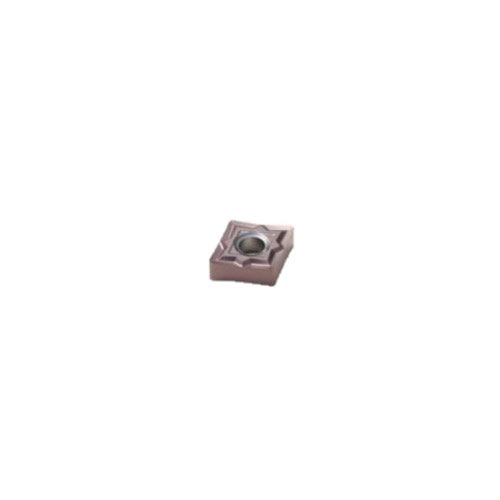

Turning Insert CNMG Insert Style - MF1 Grade TH1000

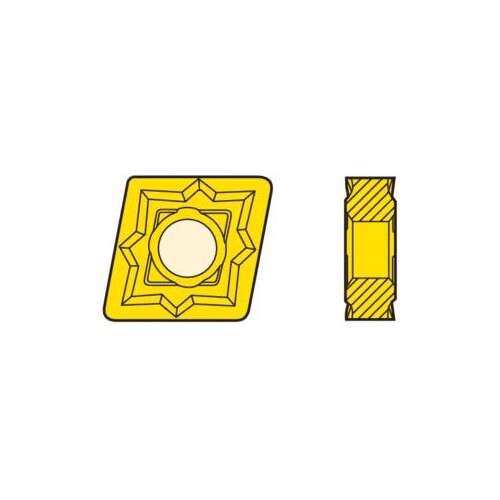

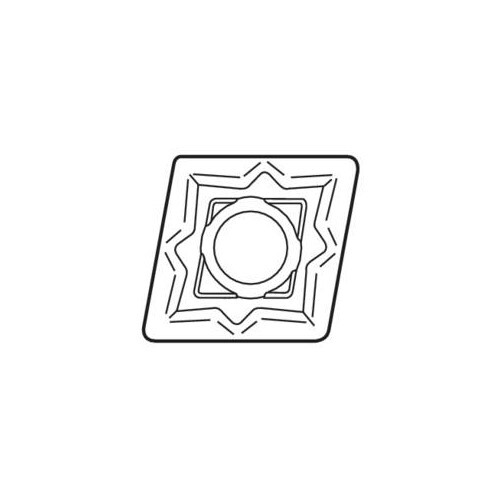

• C shape code.
• G insert type, with hole and chip breaker on both faces.
• TH1000 insert grade.

TH1000 Insert Grade

• A very hard super micro-grain grade intended for partly hardened steel components as well as generally workpiece materials such as superalloys and due to remarkable edge toughness it also provides high performance in interrupted cuts and hard-surface removal.
• Ti-Al-Si-N nanolaminate coating.

MF1 Chipbreaker Programme

• Chipbreaker intended for machining stainless steel, superalloys and titanium alloys.
• Type ..GG insert has a sharp, precision ground edge.
• Type ..MG insert has a lightly honed cutting edge for increased strength.
• MF1 is intended for use in semi-finishing and finishing applications.
• Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–3,5 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
