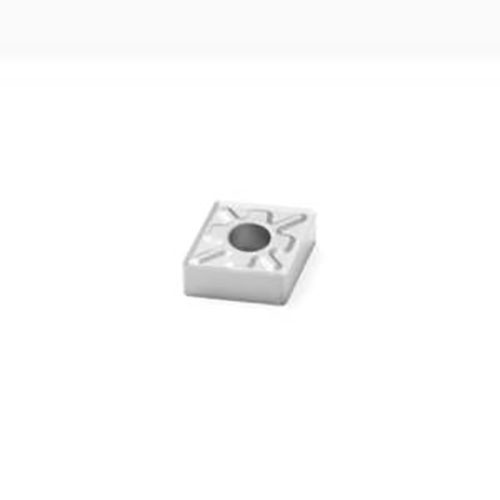

Turning Insert CNMG Insert Style - MF3 Grade TP3501

• C shape code.
• G insert type, with hole and chip breaker on both faces.
• TP3501 insert grade.

TP3501 Insert Grade

• Duratomic® grade.
• Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF3 Chipbreaker Programme

• Chipbreaker with a positive cutting rake angle intended for moderately difficult stainless steel.
• The MF3 is also intended for light roughing in relatively soft, “tacky” steel and difficult to machine stainless steel if the depth of cut is limited.
• MF3 can also be used for finishing of cast iron.
• Indicative machining range: f = 0,2–0,4 mm/rev, ap = 1–4 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
