Description

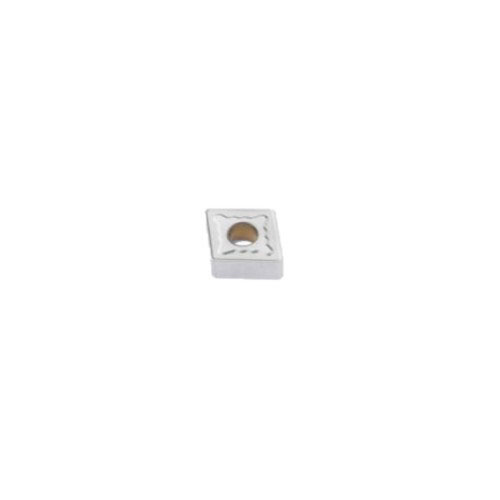

Turning Insert CNMG Insert Style - MR7 Grade TK0501

TK0501 Insert Grade

Duratomic® grade.
An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MR7 Chipbreaker Programme

The strongest chipbreaker for double-sided inserts.
The MR7 is suitable for high feed rates and depths of cut that normally require a single-sided insert.
The chipbreaker has a wide negative T land, which gives high edge strength.
Indicative machining range: f = 0,35–0,90 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
