Turning Insert CNMG Insert Style - W-FF2 Grade TP1030 - SECO

Description

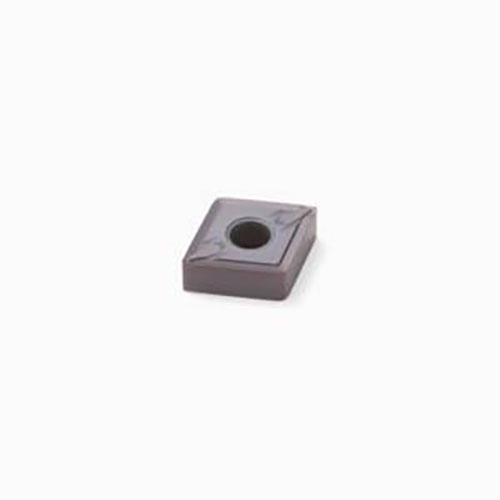

Turning Insert CNMG Insert Style - W-FF2 Grade TP1030

C shape code.
G insert type, with hole and chipbreaker on both faces
TP1030 insert grade.

TP1030 Insert Grade

Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steel and stainless steel.
Ti-Al-Si-N nanolaminate coating.

W-FF2 Chipbreaker Programme

Chipbreaker for high feed finishing of steel and stainless steel. Wide chip control range in finishing and generates a superior surface quality.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-1,5 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0117341

Brand Seco

Model Number 02787039

Barcode Number 87039027001003

Designation CNMG120404W-FF2 TP1030

Grade TP1030

Grade Type Cermet PVD

Cutting Edge Count (CEDC) 4

Insert Hand (IH) Neutral

Cutting Edge Effective Length (LE) mm 12.5

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 0.4

Insert Seat Size Code (SSC) 12

Insert Shape Code (SC) C

Inscribed Circle Diameter (IC) mm 12.7

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 5.2

Insert Included Angle (epsr) Deg 80.0 deg

Theoretical Cutting Edge Length (L) mm 12.9

Chipbreaker Programme W-FF2

Type Turning Insert
Insert Grade Grade TP1030
Insert Style CNMG
