Turning Insert CNMG Insert Style - W-MF1 Grade CP500 - SECO

Description

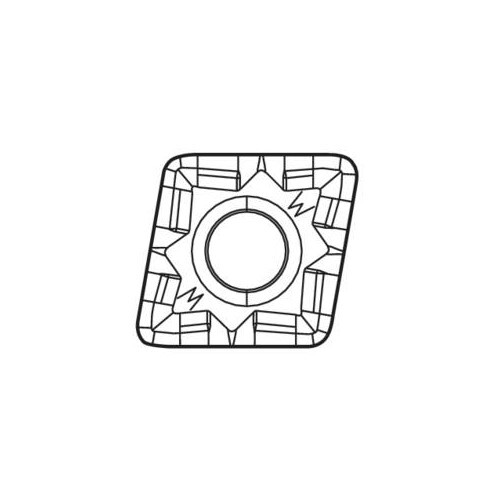

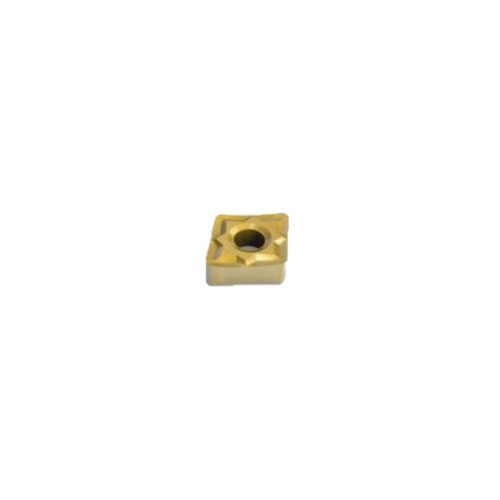

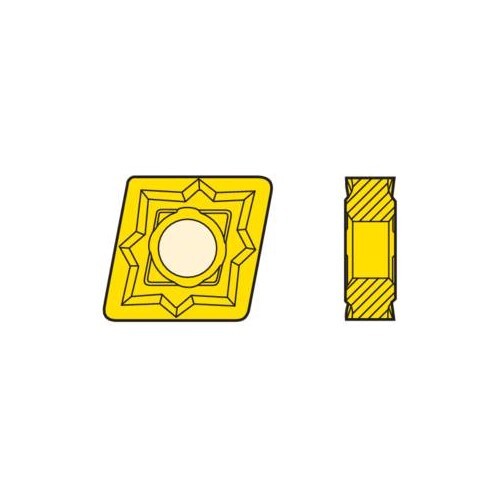

Turning Insert CNMG Insert Style - W-MF1 Grade CP500

C shape code.
G insert type, with hole and chipbreaker on both faces.
CP500 insert grade.

CP500 Insert Grade

Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts.
(Ti, Al)N + TiN.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0116811

Brand Seco

Model Number 02887361

Barcode Number 87361028001004

Designation CNMG120404W-MF1 CP500

Grade CP500

Grade Type Carbide PVD

Cutting Edge Count (CEDC) 8

Insert Hand (IH) Neutral

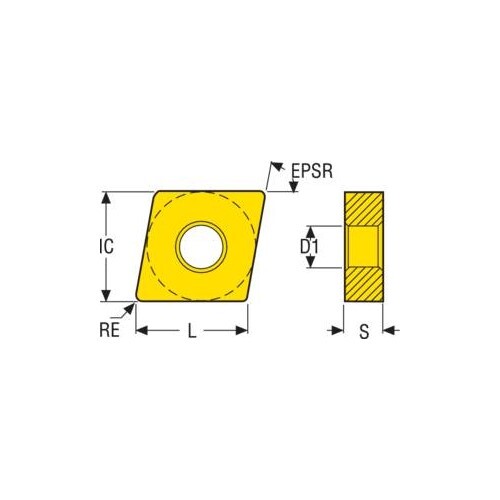

Cutting Edge Effective Length (LE) mm 12.5

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 0.4

Insert Seat Size Code (SSC) 12

Insert Shape Code (SC) C

Inscribed Circle Diameter (IC) mm 12.7

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 5.2

Insert Included Angle (epsr) Deg 80.0 deg

Theoretical Cutting Edge Length (L) mm 12.9

Chipbreaker Programme W-MF1

Type Turning Insert
Insert Grade Grade CP500
Insert Style CNMG
