Description

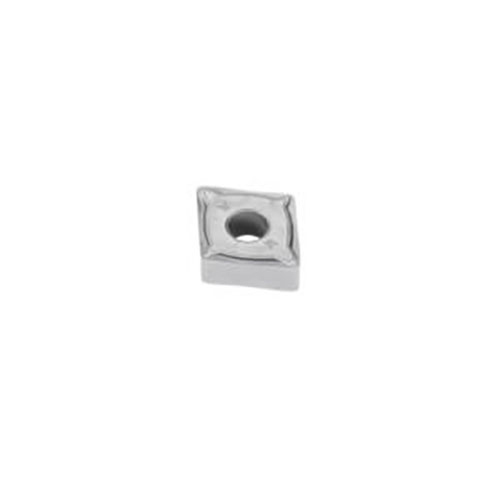

Turning Insert CNMG Insert Style - W-MF2 Grade TP2501

  • C shape code.
  • G insert type, with hole and chipbreaker on both faces.
  • TP2501 insert grade.

TP2501 Insert Grade

  • Duratomic® grade.
  • Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-MF2 Chipbreaker Prog.ramme

  • First choice for finishing with both positive and negative inserts.
  • Chipbreaker is suitable for finishing machining of steel, stainless steel and cast iron at high feed rates giving good surface finish.
  • Indicative machining range: f = 0,05-0,60 mm/rev, ap = 0,5-4,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • To boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0117765
  • Brand Seco
  • Model Number 02960047
  • Barcode Number 60047029001009
  • Designation CNMG120408W-MF2 TP2501
  • Grade TP2501
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 4
  • Insert Hand (IH) Neutral
  • Cutting Edge Effective Length (LE) mm 12.1
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Insert Seat Size Code (SSC) 12
  • Insert Shape Code (SC) C
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 12.9
  • Chipbreaker Programme W-MF2
  • Type Turning Insert
  • Insert Grade Grade TP2501
  • Insert Style CNMG
SKU: A0117765

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - W-MF2 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG120408W-MF2,TP2501 - Pack of 10

Turning Insert CNMG Insert Style - W-MF2 Grade TP2501

$259.30
