Turning Insert CNMM Insert Style - R5 Grade TP0501 - SECO

Description

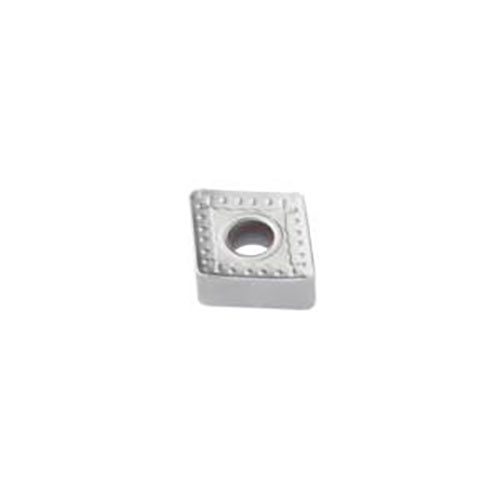

Turning Insert CNMM Insert Style - R5 Grade TP0501

C shape code.
M insert type, with hole and chipbreaker on one face only.
TP0501 insert grade.

TP0501 Insert Grade

Duratomic® grade.
A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R5 Chipbreaker Programme

Chipbreaker for single-sided inserts. Recommended for medium-roughing of steel.
Indicative machining range: f = 0,3–1,0 mm/rev, ap = 2–12 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0117260

Brand Seco

Model Number 02960645

Barcode Number 60645029001007

Designation CNMM190616-R5 TP0501

Grade TP0501

Insert Thickness (S) mm 6.35

Corner Radius (RE) mm 1.6

Insert Shape Code (SC) C

Inscribed Circle Diameter (IC) mm 19.05

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 7.9

Insert Included Angle (epsr) Deg 80.0 deg

Theoretical Cutting Edge Length (L) mm 19.3

Chipbreaker Programme R5

Type Turning Insert
Insert Grade Grade TP0501
Insert Style CNMM
