Description

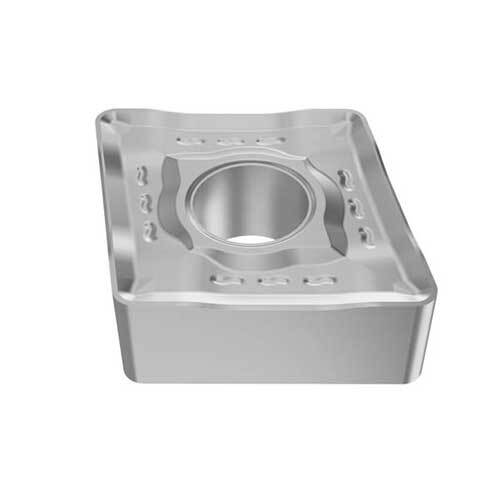

Turning Insert CNMM Insert Style - RR6 Grade TM2501

  • C shape code.
  • M insert type.

TM2501 Insert Grade

  • Duratomic® grade.
  • A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.
  • First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

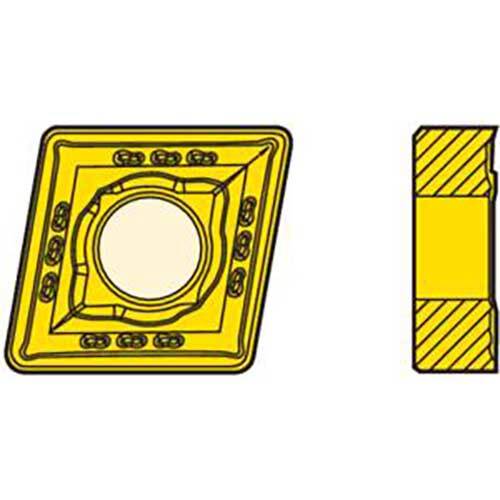

RR6 Chipbreaker Programme

  • A very easy-cutting chipbreaker for single-sided inserts.
  • Recommended for roughing of stainless steel and steel.
  • Indicative machining range: f = 0,3–1,0 mm/rev, ap = 2–12 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158328
  • Brand Seco
  • Model Number 03276190
  • Net Weight (kg) 0.025
  • Designation CNMM190624-RR6 TM2501

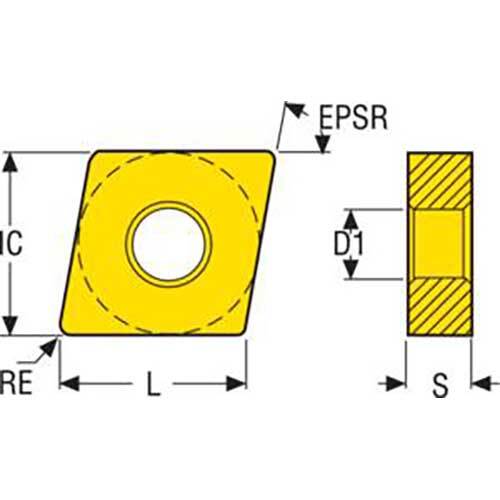

  • Cutting Edge Count (CEDC) 4
  • Insert Included Angle (EPSR) 80.0 deg
  • Insert Hand (IH) Neutral
  • Cutting Edge Effective Length (LE) mm 16.87
  • Insert Thickness (S) mm 6.35
  • Corner Radius (RE) mm 2.4
  • Inscribed Circle Diameter (IC) mm 19.05
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 7.9
  • Theoretical Cutting Edge Length (L) mm 19.34
  • Chip Breaker Manufacturers Designation (CBMD) RR6
  • Insert Seat Size Code (SSC) mm 19
  • Type Turning Insert
  • Grade TM2501
  • Grade Type Carbide CVD

Video

SKU: A0158328

Seco Turning Insert C Shape Code 6.35 x 2.4 x 19.05mm M Insert Type - RR6 Grade TM2501 ± 0.13/± 0.1mm CNMM190624-RR6 Pack of 10

Turning Insert CNMM Insert Style - RR6 Grade TM2501

$500.50
