Turning Insert CNMM Insert Style - RR6 Grade TP2501 - SECO

Description

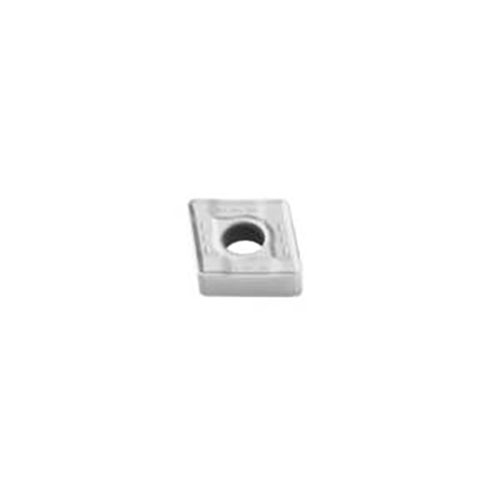

Turning Insert CNMM Insert Style - RR6 Grade TP2501

C shape code.
M insert type, with hole and chipbreaker on one face only.
TP2501 insert grade.

TP2501 Insert Grade

Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

RR6 Chipbreaker Programme

A very easy-cutting chipbreaker for single-sided inserts.
Recommended for roughing of stainless steel and steel.
Indicative machining range: f = 0,3–1,0 mm/rev, ap = 2–12 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0117795

Brand Seco

Model Number 02960655

Barcode Number 60655029001006

Designation CNMM160612-RR6 TP2501

Grade TP2501

Insert Thickness (S) mm 6.35

Corner Radius (RE) mm 1.2

Insert Shape Code (SC) C

Inscribed Circle Diameter (IC) mm 15.88

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 6.4

Insert Included Angle (epsr) Deg 80.0 deg

Theoretical Cutting Edge Length (L) mm 16.1

Chipbreaker Programme RR6

Type Turning Insert
Insert Grade Grade TP2501
Insert Style CNMM
