Description

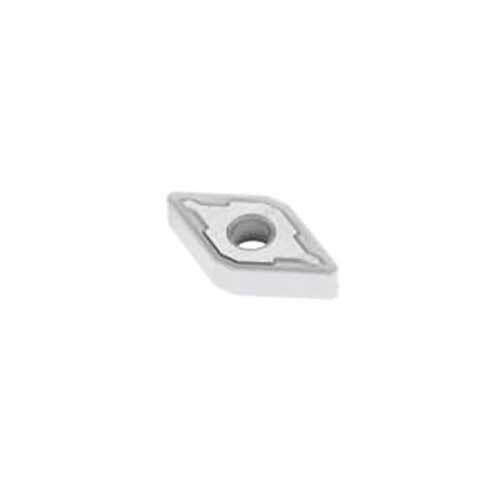

Turning Insert DNMG Insert Style - M5 Grade TP25

  • D shape code
  • G Insert Type.

TP25 Insert Grade

  • The universal grade for highly versatile performance over a wide range of applications in steels, stainless steels, and cast irons.
  • Trustworthy alternative at limited cutting speeds or high surface finishes requirements.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

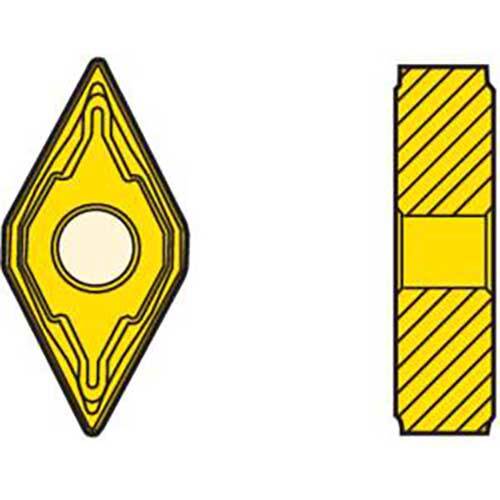

M5 Chipbreaker Programme

  • The choice for roughing by means of double-sided inserts.
  • Intended for demanding operations at high feed rates in steel.
  • Stainless steel and cast iron.
  • Combines high edge strength with comparatively low cutting forces.
  • Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158366
  • Brand Seco
  • Model Number 03279992
  • Net Weight (kg) 0.024

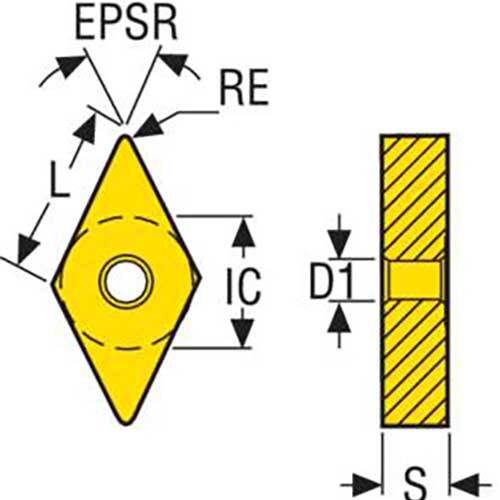

  • Designation DNMG190608-M5 TP25
  • Cutting Edge Count (CEDC) 4
  • Insert Included Angle (EPSR) 55.0 deg
  • Insert Hand (IH) Neutral
  • Cutting Edge Effective Length (LE) mm 18.2
  • Insert Thickness (S) mm 6.35
  • Corner Radius (RE) mm 0.8
  • Inscribed Circle Diameter (IC) mm 15.88
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 6.4
  • Theoretical Cutting Edge Length (L) mm 19.4
  • Chip Breaker Manufacturers Designation (CBMD) M5
  • Insert Seat Size Code (SSC) mm 19
  • Type Turning Insert
  • Grade TP25
  • Grade Type Carbide CVD

Video

SKU: A0158366

Seco Turning Insert D Shape Code 6.35 x 0.8 x 15.88mm G Insert Type - M5 Grade TP25 DNMG190608-M5 Pack of 10

Turning Insert DNMG Insert Style - M5 Grade TP25

$418.52
