Description

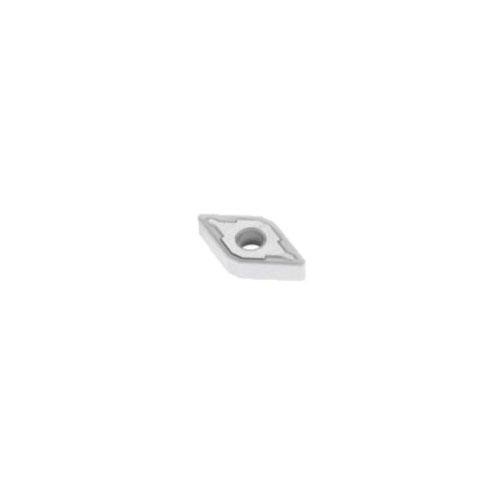

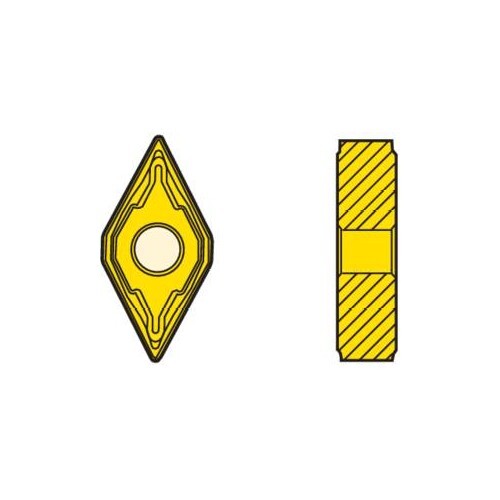

Turning Insert DNMG Insert Style - M5 Grade TP2501

  • D shape code.

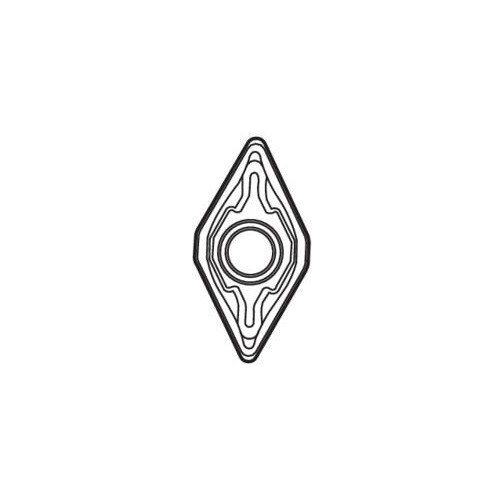

  • G insert type, with hole and chip breaker on both faces.
  • TP2501 insert grade.

TP2501 Insert Grade

  • Duratomic® grade.
  • Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
  •  Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M5 Chipbreaker Programme

  • The choice for roughing by means of double-sided inserts.
  • Intended for demanding operations at high feed rates in steel.
  • Stainless steel and cast iron.
  • Combines high edge strength with comparatively low cutting forces.
  • Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0117810
  • Brand Seco
  • Model Number 02960509
  • Barcode Number 60509029001002
  • Designation DNMG150408-M5 TP2501
  • Grade TP2501

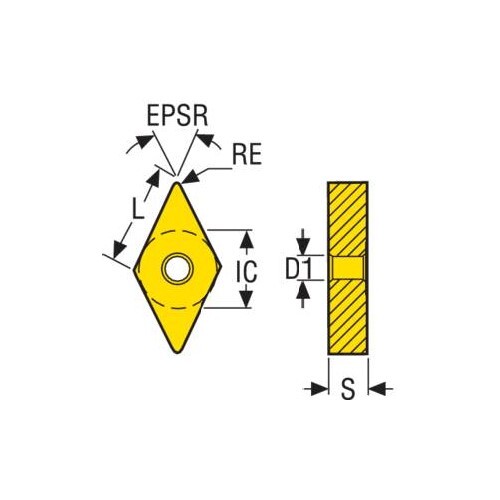

  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Insert Shape Code (SC) D
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Insert Included Angle (epsr) Deg 55.0 deg
  • Theoretical Cutting Edge Length (L) mm 15.5
  • Chipbreaker Programme M5
  • Type Turning Insert
  • Insert Grade Grade TP2501
  • Insert Style DNMG

Video

SKU: A0117810 On Sale

Seco Turning Insert D Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - M5 Grade TP2501 ± 0.13/± 0.05mm Tolerance DNMG150408-M5,TP2501 - Pack of 10

Turning Insert DNMG Insert Style - M5 Grade TP2501

$243.10
$286.00
