Description

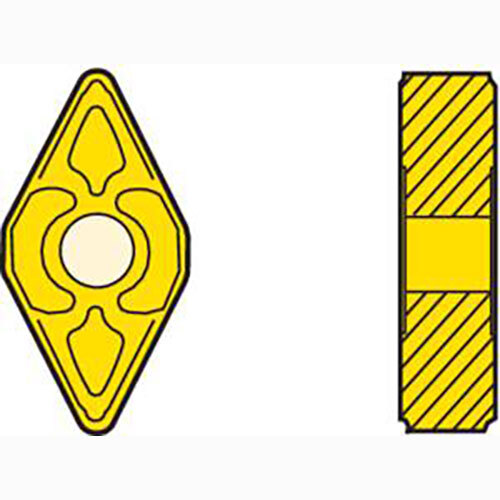

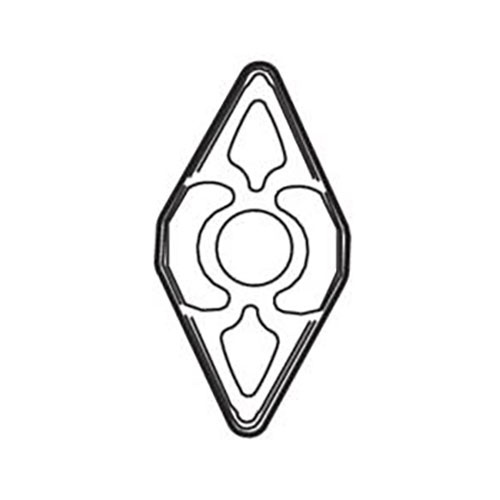

Turning Insert DNMG Insert Style - MF4 Grade TS2000

  • D shape code.
  • G insert type, with hole and chip breaker on both faces.
  • TS2000 insert grade.

TS2000 Insert Grade

  • Hard micrograin wear-resistant grade intended for finishing in superalloys and titanium as well as in many stainless steels.
  • (Ti, Al)N + TiN.

MF4 Chipbreaker Programme

  • Chipbreaker intended for medium/finishing of stainless steel, very open and highly positive geometry.
  • Indicative machining range: f = 0,15–0,50 mm/rev, ap = 0,5–4,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118272
  • Brand Seco
  • Model Number 02615935
  • Barcode Number 15935026001002
  • Designation DNMG150408-MF4 TS2000
  • Grade TS2000
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Insert Shape Code (SC) D
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Insert Included Angle (epsr) Deg 55.0 deg
  • Theoretical Cutting Edge Length (L) mm 15.5
  • Chipbreaker Programme MF4
  • Type Turning Insert
  • Insert Grade Grade TS2000
  • Insert Style DNMG
SKU: A0118272

Seco Turning Insert D Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MF4 Grade TS2000 ± 0.13/± 0.05mm Tolerance DNMG150408-MF4,TS2000 - Pack of 10

Turning Insert DNMG Insert Style - MF4 Grade TS2000

$295.54
