Turning Insert DNMG Insert Style - UX Grade TS2500 - SECO

Description

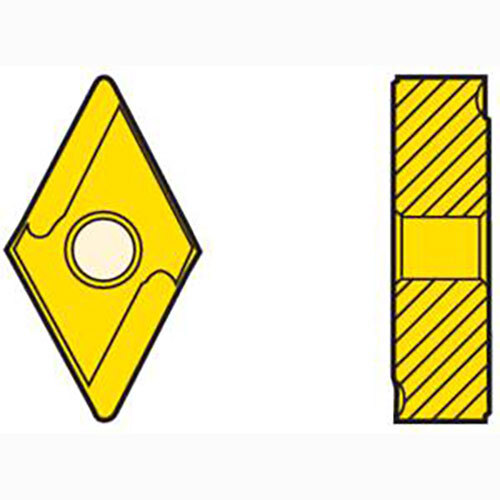

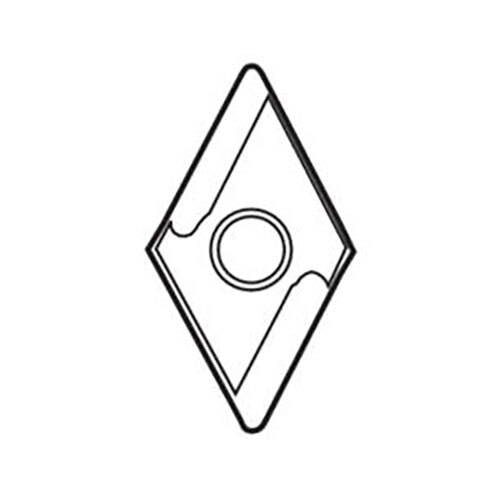

Turning Insert DNMG Insert Style - UX Grade TS2500

D shape code.
G insert type, with hole and chipbreaker on both faces
TS2500 insert grade.

TS2500 Insert Grade

Relatively hard micrograin grade for machining of superalloys and titanium in roughing applications and due to its design also applicable in a wide range of materials such as stainless steel.
(Ti, Al)N + TiN.

UX Chipbreaker Programme

Chipbreaker for negative inserts. Positive cutting rake with a sharp edge.
Low cutting force. Suitable for slim components.
Indicative machining range: f = 0,2–0,4 mm/rev, ap =1,0–6,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0118336

Brand Seco

Model Number 02615963

Barcode Number 15963026001005

Designation DNMG150604L-UX TS2500

Grade TS2500

Insert Hand (IH) Left

Insert Thickness (S) mm 6.35

Corner Radius (RE) mm 0.4

Insert Shape Code (SC) D

Inscribed Circle Diameter (IC) mm 12.7

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 5.2

Insert Included Angle (epsr) Deg 55.0 deg

Theoretical Cutting Edge Length (L) mm 15.5

Chipbreaker Programme UX

Type Turning Insert
Insert Grade Grade TS2500
Insert Style DNMG
