Description

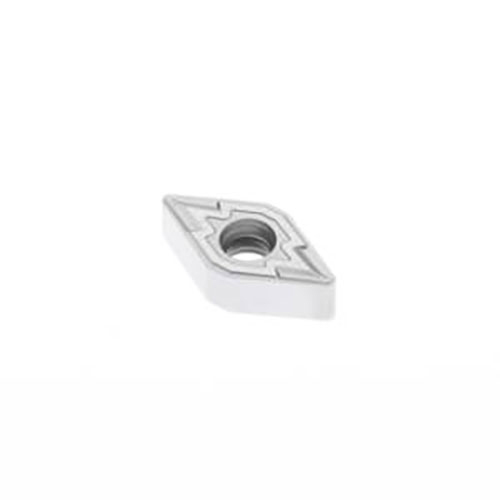

Turning Insert DNMU Insert Style - M3 Grade TP2501

D shape code.
U insert type, negative insert with hole and chip-breaker on both faces for tool holders with pin lock only.
TP2501 insert grade.

TP2501 Insert Grade

Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M3 Chipbreaker Programme

First choice for medium-rough machining and also the most versatile Seco chipbreaker.
In most cases, it is the only chipbreaker needed.
It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
