Turning Insert HX Grade (TPGN) - SECO

Description

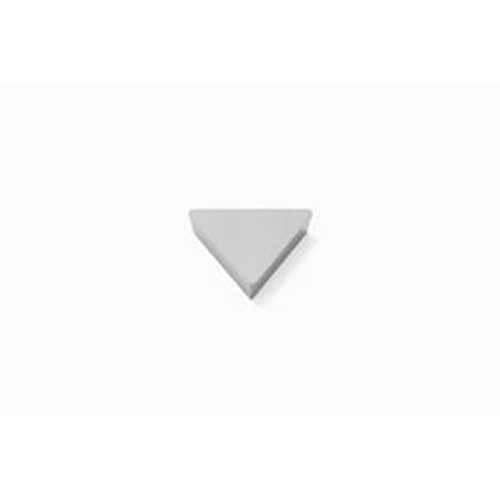

Turning Insert HX Grade (TPGN)

HX grade.
T, Insert Shape Code (SC).
16, Insert Seat Size Code (SSC).

About HX Grade

Carbide Uncoated.
A universal uncoated grade intended for machining of cast iron and hardened steels useful also in non-ferrous materials.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
Supporting inserts of different shapes, sizes, and thicknesses.
We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0121944

Brand Seco

Model Number 74010736

Barcode Number 10736740001003

Designation TPGN160304,HX

Grade Type Carbide Uncoated

Cutting Edge Count (CEDC) 3

Insert Hand (IH) Neutral

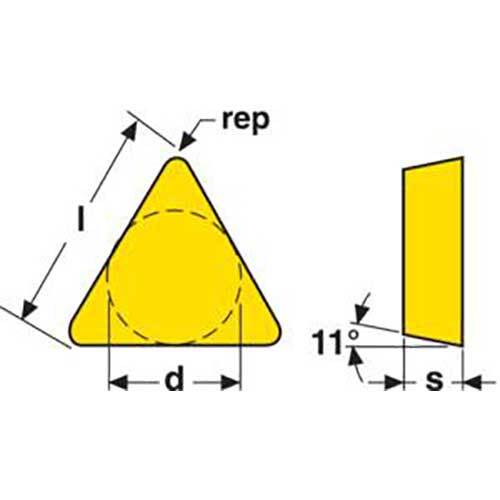

Cutting Edge Effective Length (LE) mm 16.1

Insert Thickness (S) mm 3.18

Corner Radius (RE) mm 0.4

Insert Seat Size Code (SSC) 16

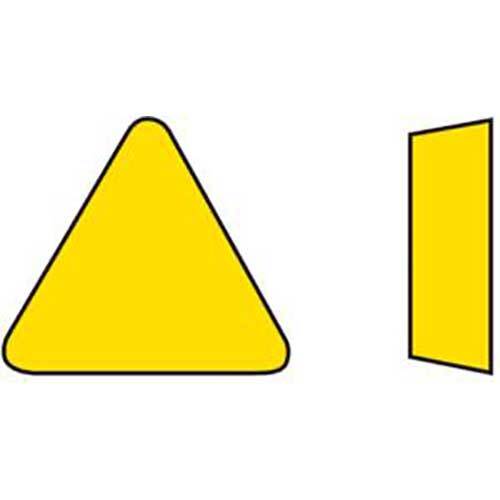

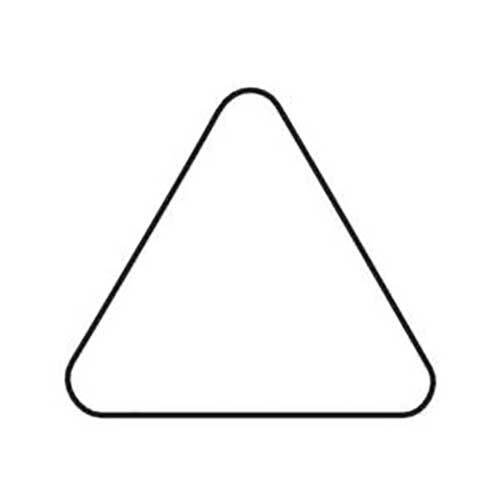

Insert Shape Code (SC) T

Inscribed Circle Diameter (IC) mm 9.52

Clearance Angle Major (an) Deg 11.0 deg

Insert Included Angle (epsr) Deg 60.0 deg

Theoretical Cutting Edge Length (L) mm 16.5

Type Turning Insert
Grade HX
Insert Hand (IH) Neutral
Insert Shape Code (SC) T
