Turning Insert LNMX Insert Style - RR94 Grade TP0501 - SECO

Description

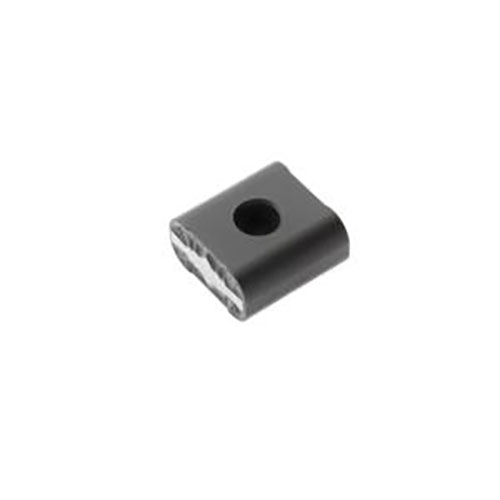

Turning Insert LNMX Insert Style - RR94 Grade TP0501

L shape code.
X insert type.
TP0501 insert grade.

TP0501 Insert Grade

Duratomic® grade.
A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

LNMX-RR94 Inserts for Railway Wheel Re-turning

RRR94 – for the moderately damaged wheels.
D.O.C. and feed recommendation.
LNMX19, ap = 2-5 mm; f = 0,45-1,40 mm/rev.
LNMX30, ap = 2-10 mm; f = 0,55-1,80 mm/rev.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0117287

Brand Seco

Model Number 02960792

Barcode Number 60792029001008

Designation LNMX191940-RR94 TP0501

Grade TP0501

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 4

Insert Hand (IH) Neutral

Cutting Edge Effective Length (LE) mm 15

Insert Thickness (S) mm 19.05

Corner Radius (RE) mm 4

Insert Seat Size Code (SSC) 19

Insert Shape Code (SC) L

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 6.4

Insert Included Angle (epsr) Deg 90.0 deg

Theoretical Cutting Edge Length (L) mm 19.05

Chipbreaker Programme RR94

Insert Width (w1) Mm :10.0

Type Turning Insert
Insert Grade Grade TP0501
Insert Style LNMX
