Description

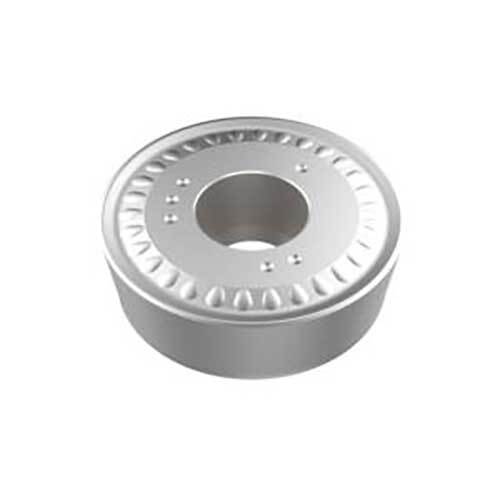

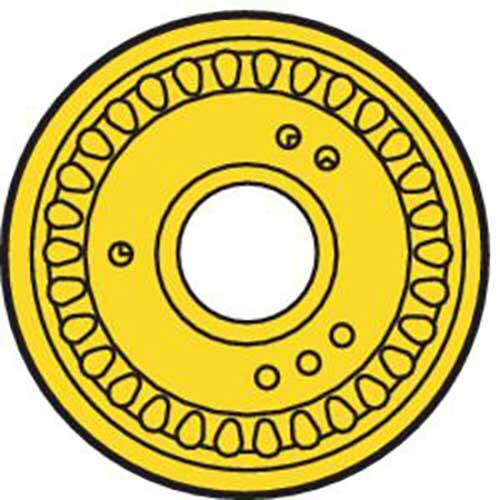

Turning Insert RCMX Insert Style - RR93 7° Grade TP25

  • R shape code.
  • X Insert Type.
  • 7° insert side clearance angles.

TP25 Insert Grade

  • The universal grade for highly versatile performance over a wide range of applications in steels, stainless steels, and cast irons.
  • Trustworthy alternative at limited cutting speeds or high surface finishes requirements.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158405
  • Brand Seco
  • Model Number 03276570
  • Net Weight (kg) 0.046
  • Designation RCMX250700-RR93 TP25
  • Cutting Edge Count (CEDC) 4
  • Insert Hand (IH) Neutral
  • Insert Thickness (S) mm 7.94
  • Insert Diameter (insd) Mm 25
  • Clearance Angle Major (an) Deg 7.0 deg
  • Fixing Hole Diameter (d1) Mm 7.2
  • Chip Breaker Manufacturers Designation (CBMD) RR93
  • Insert Seat Size Code (SSC) mm 25
  • Type Turning Insert
  • Grade TP25
  • Grade Type Carbide CVD
SKU: A0158405

Seco Turning Insert R Shape Code 7.2 x 7.94 x 25mm X Insert Type - RR93 7° Grade TP25 RCMX250700-RR93 Pack of 10

Turning Insert RCMX Insert Style - RR93 7° Grade TP25

$819.86
