Description

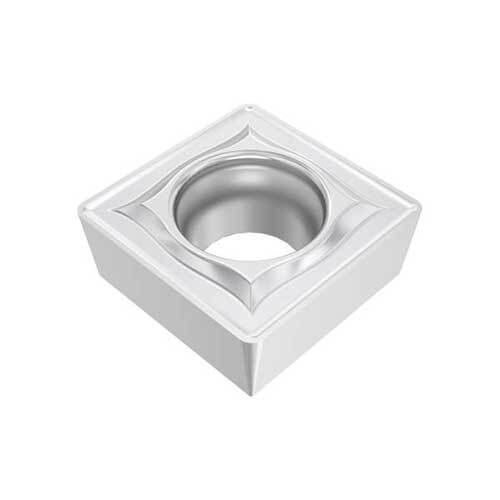

Turning Insert SCMT Insert Style - M3 7° Grade TM1501

  • S shape code.
  • T Insert Type.
  • 7° insert side clearance angles.

TM1501 Insert Grade

  • Duratomic® grade.
  • The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.
  • Complements in mixes of steel and stainless steel turning.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

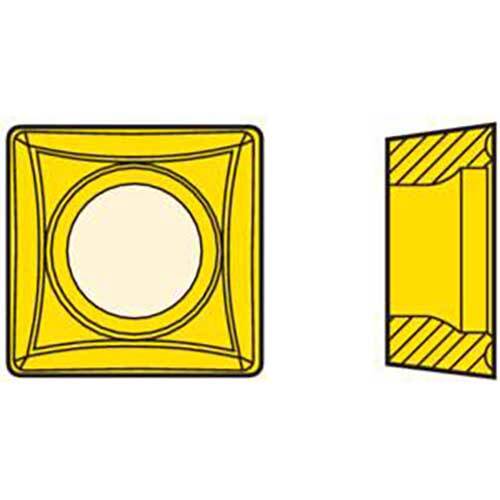

M3 Chipbreaker Programme

  • First choice for medium-rough machining and also the most versatile Seco chipbreaker.
  • In most cases, it is the only chipbreaker needed.
  • It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
  • Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
  • Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158410
  • Brand Seco
  • Model Number 03276575
  • Net Weight (kg) 0.003
  • Designation SCMT09T304-M3 TM1501
  • Cutting Edge Count (CEDC) 4

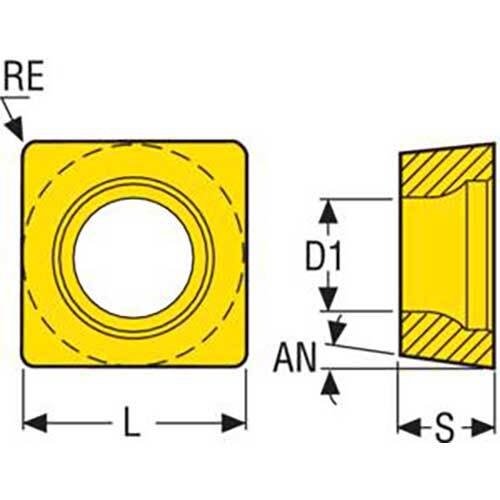

  • Insert Included Angle (EPSR) 90.0 deg
  • Insert Hand (IH) Neutral
  • Cutting Edge Effective Length (LE) mm 9.11
  • Insert Thickness (S) mm 3.97
  • Corner Radius (RE) mm 0.4
  • Inscribed Circle Diameter (IC) mm 9.53
  • Clearance Angle Major (an) Deg 7.0 deg
  • Fixing Hole Diameter (d1) Mm 4.5
  • Theoretical Cutting Edge Length (L) mm 9.52
  • Chip Breaker Manufacturers Designation (CBMD) M3
  • Insert Seat Size Code (SSC) mm 9
  • Type Turning Insert
  • Grade TM1501
  • Grade Type Carbide CVD
SKU: A0158410

Seco Turning Insert S Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - M3 7° Grade TM1501 SCMT09T304-M3 Pack of 10

Turning Insert SCMT Insert Style - M3 7° Grade TM1501

$181.14
