Turning Insert SCMT Insert Style - RR97 7° Grade TP25 - SECO

Description

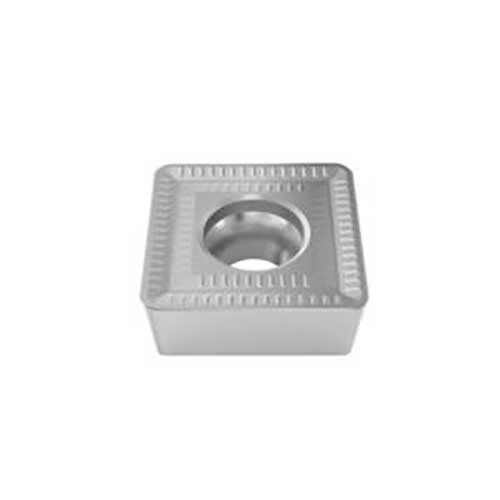

Turning Insert SCMT Insert Style - RR97 7° Grade TP25

S shape code.
T Insert Type.
7° insert side clearance angles.

TP25 Insert Grade

The universal grade for highly versatile performance over a wide range of applications in steels, stainless steels, and cast irons.
Trustworthy alternative at limited cutting speeds or high surface finishes requirements.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0158413

Brand Seco

Model Number 03310397

Net Weight (kg) 0.168

Designation SCMT380932-RR97 TP25

Cutting Edge Count (CEDC) 4

Insert Included Angle (EPSR) 90.0 deg

Insert Hand (IH) Neutral

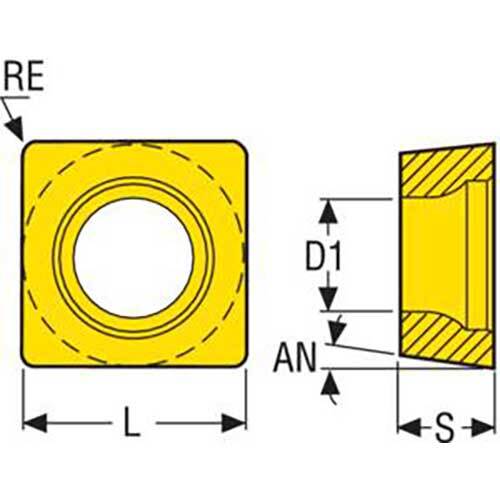

Cutting Edge Effective Length (LE) mm 34.9

Insert Thickness (S) mm 9.52

Corner Radius (RE) mm 3.2

Inscribed Circle Diameter (IC) mm 38.1

Clearance Angle Major (an) Deg 7.0 deg

Fixing Hole Diameter (d1) Mm 8.7

Theoretical Cutting Edge Length (L) mm 38.1

Chip Breaker Manufacturers Designation (CBMD) RR97

Insert Seat Size Code (SSC) mm 38

Type Turning Insert
Grade TP25
Grade Type Carbide CVD
