Turning Insert SNMG Insert Style - M5 Grade TP3501 - SECO

Description

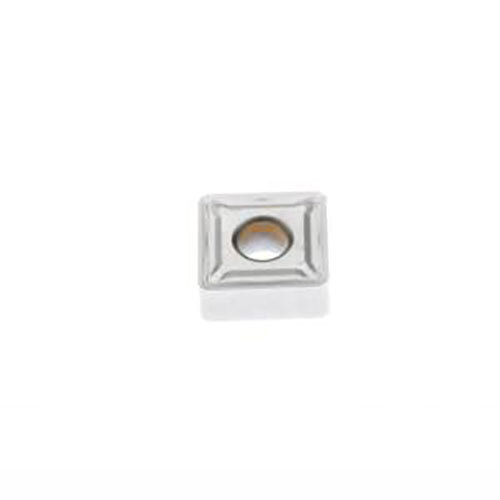

Turning Insert SNMG Insert Style - M5 Grade TP3501

S shape code.

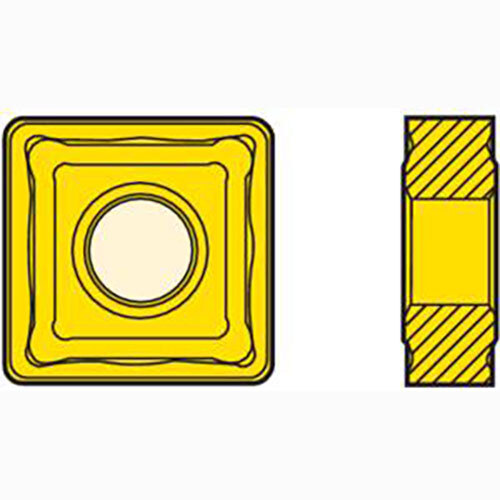

G insert type, with hole and chip breaker on both faces.
TP3501 insert grade.

TP3501 Insert Grade

Duratomic® grade.
Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

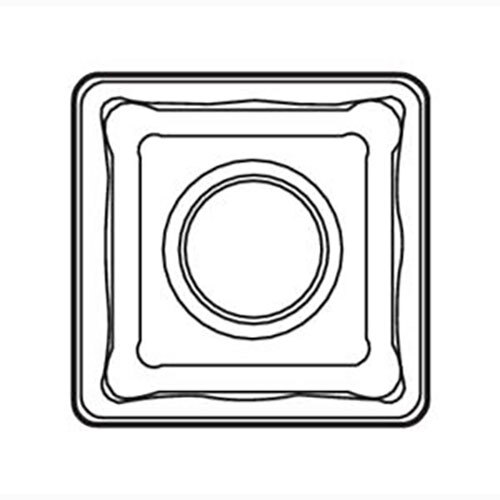

M5 Chipbreaker Programme

The choice for roughing by means of double-sided inserts.
Intended for demanding operations at high feed rates in steel.
Stainless steel and cast iron.
Combines high edge strength with comparatively low cutting forces.
Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0118086

Brand Seco

Model Number 03093929

Barcode Number 93929030001002

Designation SNMG090308-M5 TP3501

Grade TP3501

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 8

Insert Hand (IH) Neutral

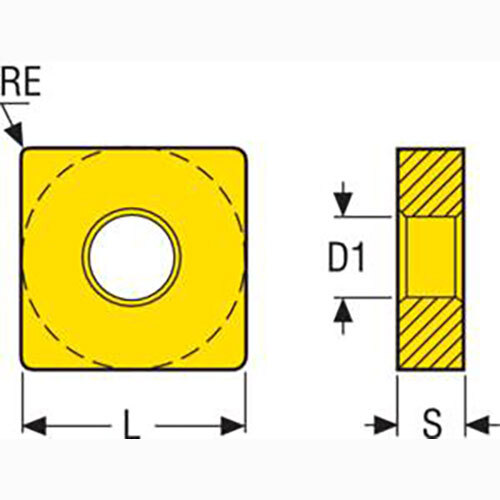

Cutting Edge Effective Length (LE) mm 8.7

Insert Thickness (S) mm 3.18

Corner Radius (RE) mm 0.8

Insert Seat Size Code (SSC) 9

Insert Shape Code (SC) S

Inscribed Circle Diameter (IC) mm 9.53

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 3.8

Insert Included Angle (epsr) Deg 90.0 deg

Theoretical Cutting Edge Length (L) mm 9.53

Chipbreaker Programme M5

Type Turning Insert
Insert Grade Grade TP3501
Insert Style SNMG
