Specifications

AIMS SKU A0158424
Brand Seco
Model Number 03273948
Net Weight (kg) 0.009
Designation SNMG120412-MF4 TM1501
Cutting Edge Count (CEDC) 8
Insert Included Angle (EPSR) 90.0 deg
Insert Hand (IH) Neutral

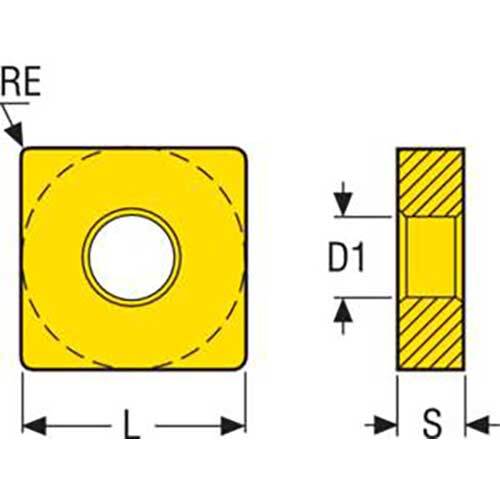

Cutting Edge Effective Length (LE) mm 11.51
Insert Thickness (S) mm 4.76
Corner Radius (RE) mm 1.2
Inscribed Circle Diameter (IC) mm 12.7
Clearance Angle Major (an) Deg 0.0 deg
Fixing Hole Diameter (d1) Mm 5.2
Theoretical Cutting Edge Length (L) mm 12.7

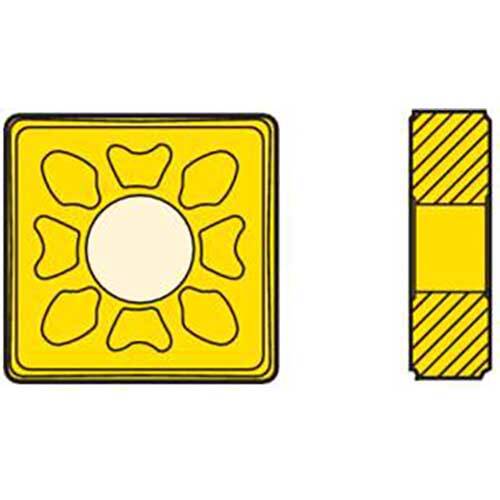

Chip Breaker Manufacturers Designation (CBMD) MF4
Insert Seat Size Code (SSC) mm 12

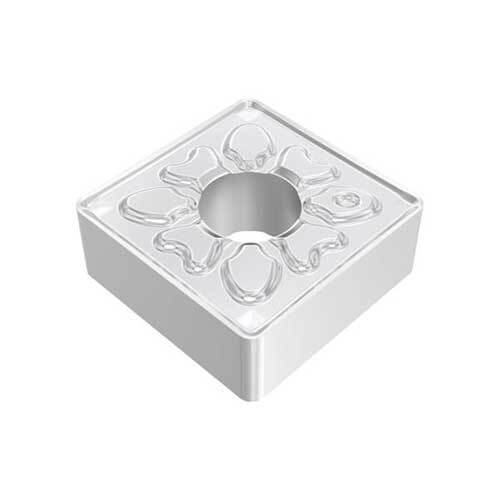

• Type Turning Insert
• Grade TM1501
• Grade Type Carbide CVD
