Turning Insert SNMG Insert Style - MR3 Grade TS2000 - SECO

Description

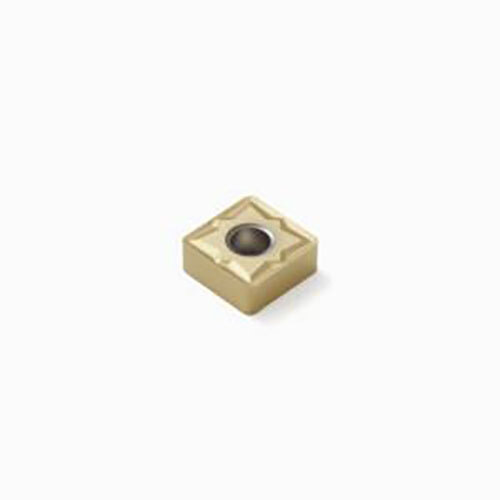

Turning Insert SNMG Insert Style - MR3 Grade TS2000

S shape code.
G insert type, with hole and chip breaker on both faces.
TS2000 insert grade.

TS2000 Insert Grade

Hard micrograin wear-resistant grade intended for finishing in superalloys and titanium as well as in many stainless steels.
(Ti, Al)N + TiN.

MR3 Chipbreaker Programme

Chipbreaker with a positive cutting rake angle that reduces cutting forces and gives a very high edge strength.
Intended for medium-rough and rough machining of superalloys, titanium alloys and hardened steel.
Indicative machining range: f = 0,2–0,6 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0118285

Brand Seco

Model Number 02615909

Barcode Number 15909026001003

Designation SNMG120408-MR3 TS2000

Grade TS2000

Grade Type Carbide PVD

Cutting Edge Count (CEDC) 8

Insert Hand (IH) Neutral

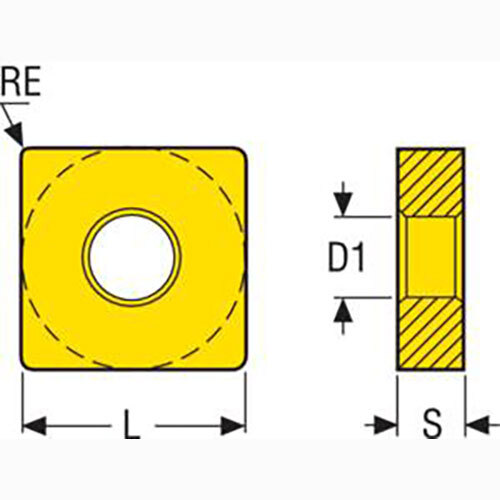

Cutting Edge Effective Length (LE) mm 11.9

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 0.8

Insert Seat Size Code (SSC) 12

Insert Shape Code (SC) S

Inscribed Circle Diameter (IC) mm 12.7

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 5.2

Insert Included Angle (epsr) Deg 90.0 deg

Theoretical Cutting Edge Length (L) mm 12.7

Chipbreaker Programme MR3

Type Turning Insert
Insert Grade Grade TS2000
Insert Style SNMG
