Description

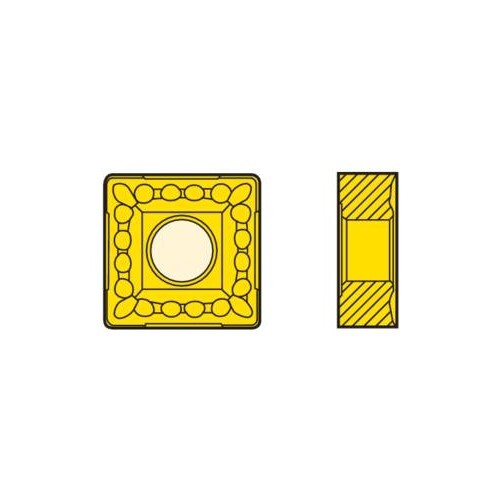

Turning Insert SNMM Insert Style - R4 Grade TP2501

  • S shape code.
  • M insert type, with hole and chipbreaker on one face only.
  • TP2501 insert grade.

TP2501 Insert Grade

  • Duratomic® grade.
  • Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steel as well as many stainless steel and cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

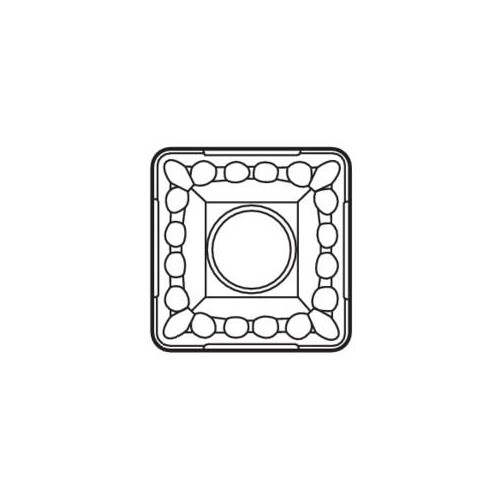

R4 Chipbreaker Programme

  • Chipbreaker for single-sided inserts. It has a positive cutting edge which gives low cutting forces.
  • Indicative machining range: f = 0,2–0,6 mm/rev, ap = 2–10 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

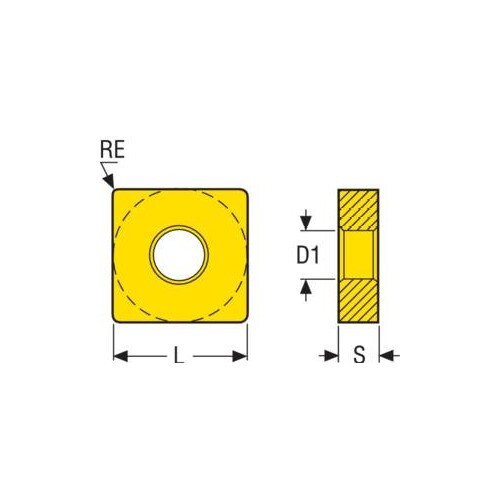

Specifications

  • AIMS SKU A0117873
  • Brand Seco
  • Model Number 02960755
  • Barcode Number 60755029001003
  • Designation SNMM150612-R4 TP2501
  • Grade TP2501
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 4
  • Insert Hand (IH) Neutral
  • Cutting Edge Effective Length (LE) mm 14.7
  • Insert Thickness (S) mm 6.35
  • Corner Radius (RE) mm 1.2
  • Insert Seat Size Code (SSC) 15
  • Insert Shape Code (SC) S
  • Inscribed Circle Diameter (IC) mm 15.88
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 6.4
  • Insert Included Angle (epsr) Deg 90.0 deg
  • Theoretical Cutting Edge Length (L) mm 15.88
  • Chipbreaker Programme R4
  • Type Turning Insert
  • Insert Grade Grade TP2501
  • Insert Style SNMM

Video

SKU: A0117873

Seco Turning Insert S Shape Code 6.35 x 1.2 x 15.88mm M Insert Type - R4 Grade TP2501 ± 0.13/± 0.05mm Tolerance SNMM150612-R4,TP2501 - Pack of 10

Turning Insert SNMM Insert Style - R4 Grade TP2501

$358.46
