Turning Insert SNMM Insert Style - RR9 Grade TP40 - SECO

Description

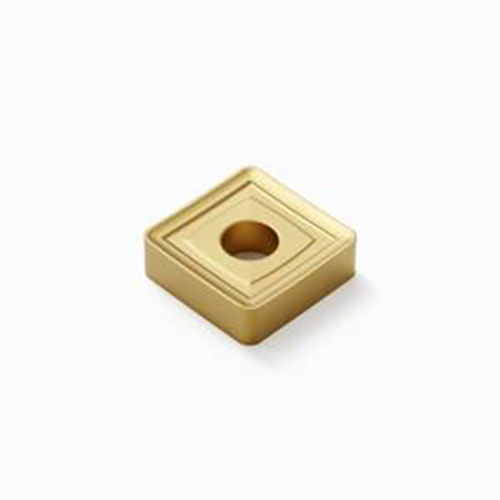

Turning Insert SNMM Insert Style - RR9 Grade TP40

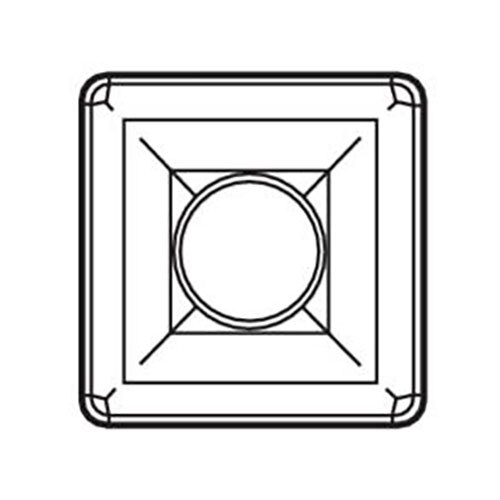

S shape code.

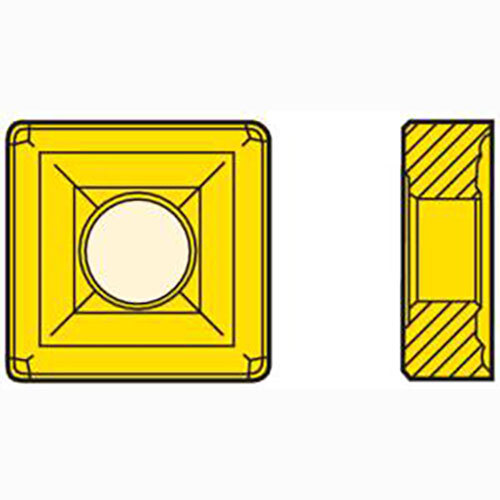

M insert type, with hole and chipbreaker on one face only.
TP40 insert grade.

TP40 Insert Grade

Universal grade for a extremely secure performance in the most demanding application from steel, stainless steel to superalloys especially in castings and forgings.
TiC/Ti(C,N) + TiN.

RR9 Chipbreaker Programme

Extremely strong chipbreaker for single-sided negative inserts, for use at high feed rates.
Suitable for difficult castings and forgings and for austenitic stainless steel.
Indicative machining range: f = 0,5–1,2 mm/rev, ap = 2,5–15,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0118225

Brand Seco

Model Number 74019266

Barcode Number 19266740001006

Designation SNMM190616-RR9 TP40

Grade TP40

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 4

Insert Hand (IH) Neutral

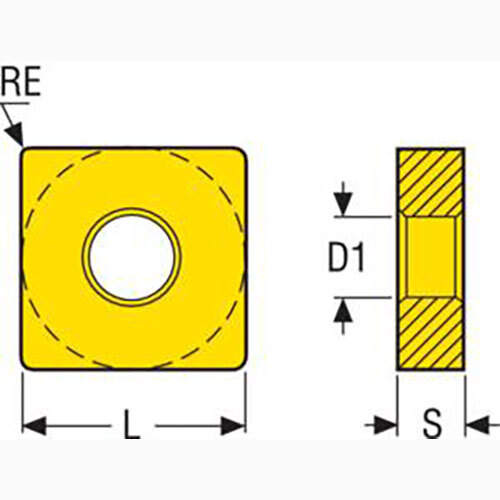

Cutting Edge Effective Length (LE) mm 17.45

Insert Thickness (S) mm 6.35

Corner Radius (RE) mm 1.6

Insert Seat Size Code (SSC) 19

Insert Shape Code (SC) S

Inscribed Circle Diameter (IC) mm 19.05

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 7.9

Insert Included Angle (epsr) Deg 90.0 deg

Theoretical Cutting Edge Length (L) mm 19.05

Chipbreaker Programme RR9

Type Turning Insert
Insert Grade Grade TP40
Insert Style SNMM
