Turning Insert TK1501 Grade (TPUN) - SECO

Description

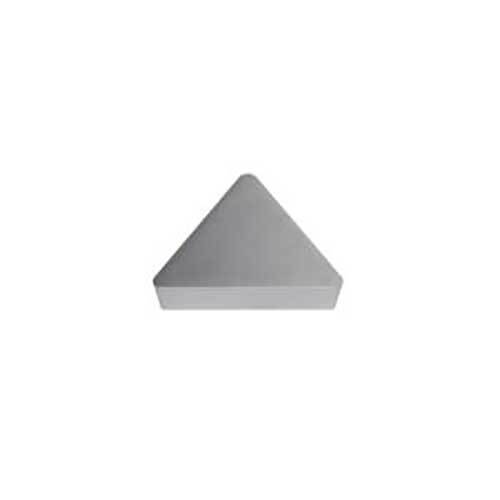

Turning Insert TK1501 Grade (TPUN)

TK1501 grade.

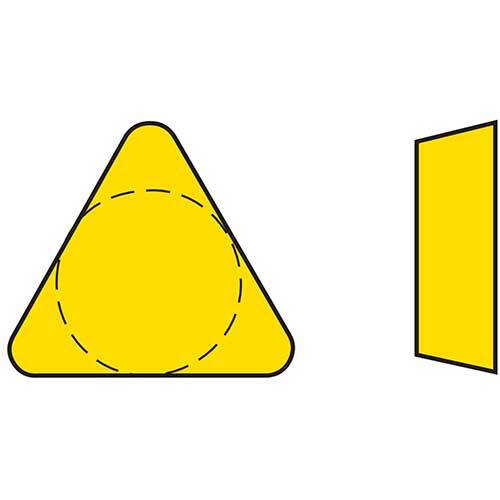

T, Insert Shape Code (SC).
11, Insert Seat Size Code (SSC).

About TK1501 Grade

Carbide CVD.
Duratomic® technology coated grade.
A highly wear-resistant grade for cast irons in general as well as in steels.
The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
Supporting inserts of different shapes, sizes, and thicknesses.
We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0121952

Brand Seco

Model Number 03064545

Barcode Number 64545030001002

Designation TPUN110308,TK1501

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 3

Insert Hand (IH) Neutral

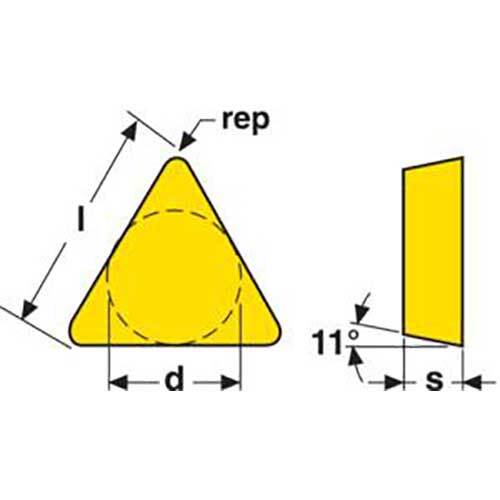

Cutting Edge Effective Length (LE) mm 10.2

Insert Thickness (S) mm 3.18

Corner Radius (RE) mm 0.8

Insert Seat Size Code (SSC) 11

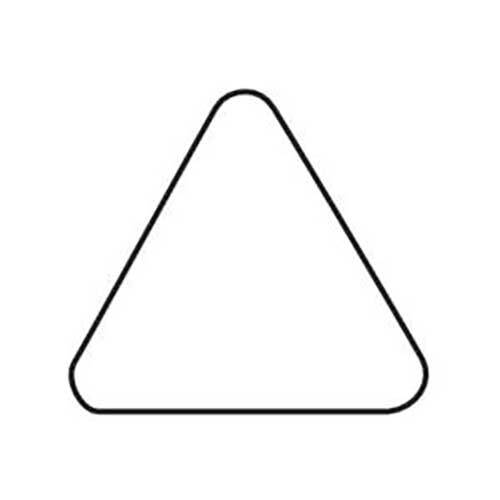

Insert Shape Code (SC) T

Inscribed Circle Diameter (IC) mm 6.35

Clearance Angle Major (an) Deg 11.0 deg

Insert Included Angle (epsr) Deg 60.0 deg

Theoretical Cutting Edge Length (L) mm 11

Type Turning Insert
Grade TK1501
Insert Hand (IH) Neutral
Insert Shape Code (SC) T
