Description

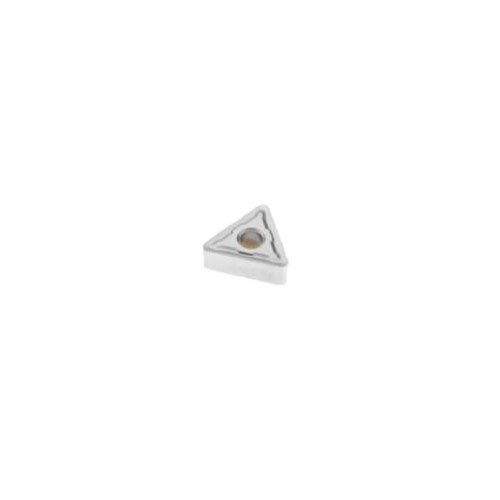

Turning Insert TNMG Insert Style - M5 Grade TP0501

  • T shape code.
  • G insert type, with hole and chip breaker on both faces.
  • TP0501 insert grade.

TP0501 Insert Grade

  • Duratomic® grade.
  • A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

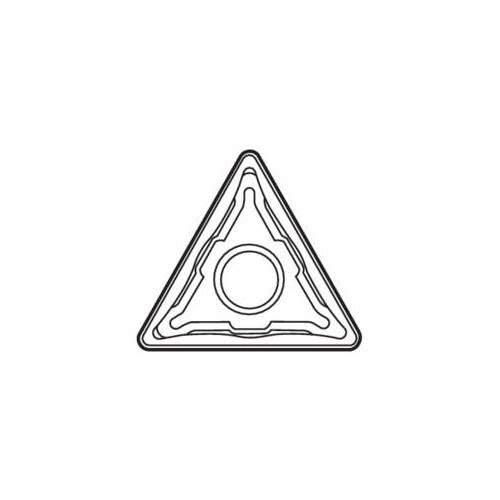

M5 Chipbreaker Programme

  • The choice for roughing by means of double-sided inserts.
  • Intended for demanding operations at high feed rates in steel.
  • Stainless steel and cast iron.
  • Combines high edge strength with comparatively low cutting forces.
  • Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0117303
  • Brand Seco
  • Model Number 02960440
  • Barcode Number 60440029001008
  • Designation TNMG160408-M5 TP0501
  • Grade TP0501
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 6
  • Insert Hand (IH) Neutral

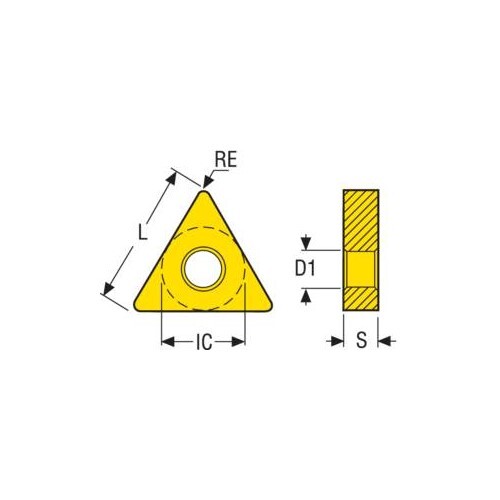

  • Cutting Edge Effective Length (LE) mm 14.5
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Insert Seat Size Code (SSC) 16
  • Insert Shape Code (SC) T
  • Inscribed Circle Diameter (IC) mm 9.53
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 3.8
  • Insert Included Angle (epsr) Deg 60.0 deg
  • Theoretical Cutting Edge Length (L) mm 16.5
  • Chipbreaker Programme M5
  • Type Turning Insert
  • Insert Grade Grade TP0501
  • Insert Style TNMG

Video

SKU: A0117303

Seco Turning Insert T Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - M5 Grade TP0501 ± 0.13/± 0.05mm Tolerance TNMG160408-M5,TP0501 - Pack of 10

Turning Insert TNMG Insert Style - M5 Grade TP0501

$200.20
