Description

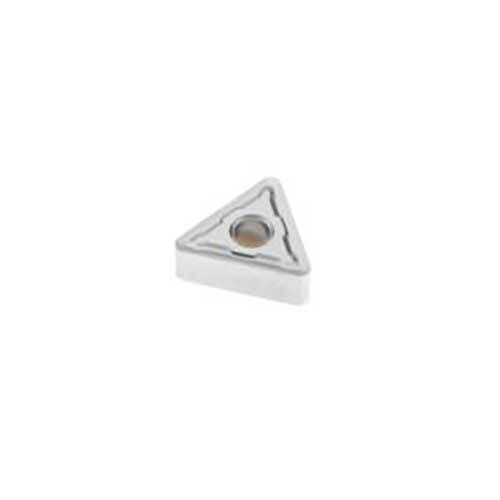

Turning Insert TNMG Insert Style - M5 Grade TP25

TP25 Insert Grade

The universal grade for highly versatile performance over a wide range of applications in steels, stainless steels, and cast irons.
Trustworthy alternative at limited cutting speeds or high surface finishes requirements.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

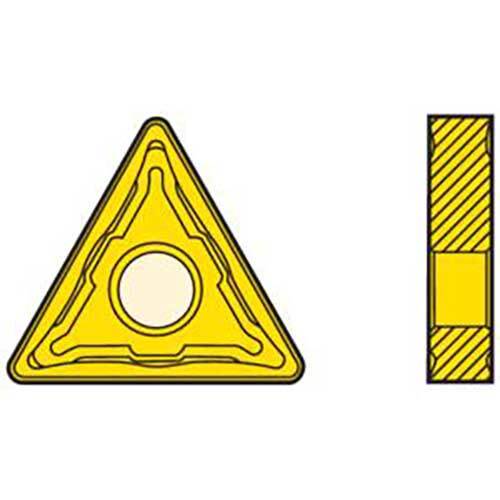

M5 Chipbreaker Programme

A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron.
Combines high edge strength with comparatively low cutting forces.
Safe action in interruptions and rough skin on parts also including boring.
Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
