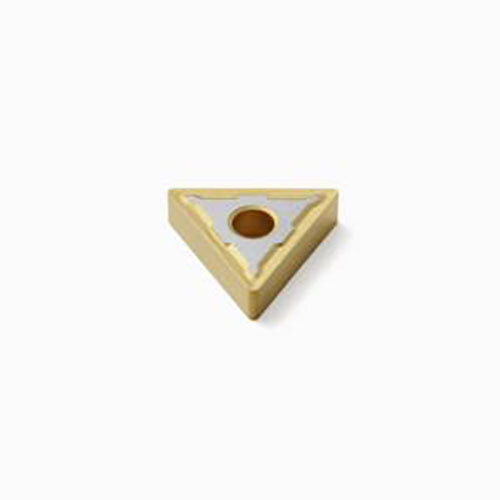

Turning Insert TNMG Insert Style - M5 Grade TP40

  • T shape code.
  • G insert type, with hole and chip breaker on both faces.
  • TP40 insert grade.

TP40 Insert Grade

  • Universal grade for a extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings.
  • TiC/Ti(C,N) + TiN.

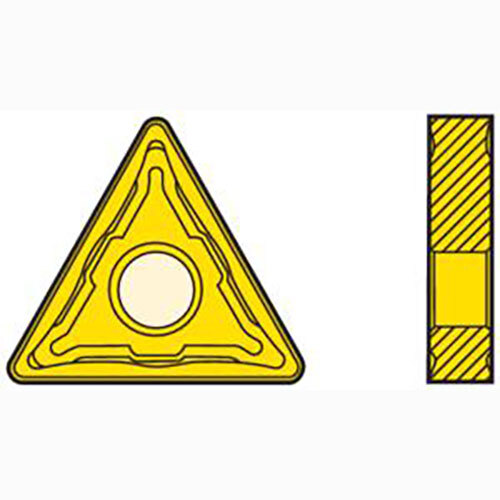

M5 Chipbreaker Programme

  • The choice for roughing by means of double-sided inserts.
  • Intended for demanding operations at high feed rates in steel.
  • Stainless steel and cast iron.
  • Combines high edge strength with comparatively low cutting forces.
  • Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118227
  • Brand Seco
  • Model Number 00039761
  • Barcode Number 39761000001009
  • Designation TNMG160308-M5 TP40
  • Grade TP40
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 6
  • Insert Hand (IH) Neutral

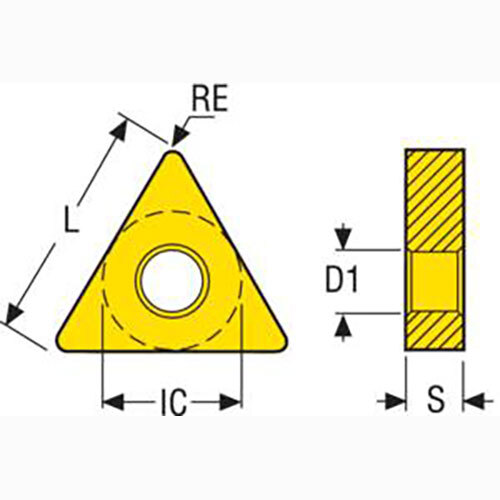

  • Cutting Edge Effective Length (LE) mm 14.5
  • Insert Thickness (S) mm 3.18
  • Corner Radius (RE) mm 0.8
  • Insert Seat Size Code (SSC) 16
  • Insert Shape Code (SC) T
  • Inscribed Circle Diameter (IC) mm 9.53
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 3.8
  • Insert Included Angle (epsr) Deg 60.0 deg
  • Theoretical Cutting Edge Length (L) mm 16.5
  • Chipbreaker Programme M5
  • Type Turning Insert
  • Insert Grade Grade TP40
  • Insert Style TNMG

Video

SKU: A0118227

Seco Turning Insert T Shape Code 3.18 x 0.8 x 9.53mm G Insert Type - M5 Grade TP40 ± 0.13/± 0.05mm Tolerance TNMG160308-M5,TP40 - Pack of 10

Turning Insert TNMG Insert Style - M5 Grade TP40

$174.46
