Description

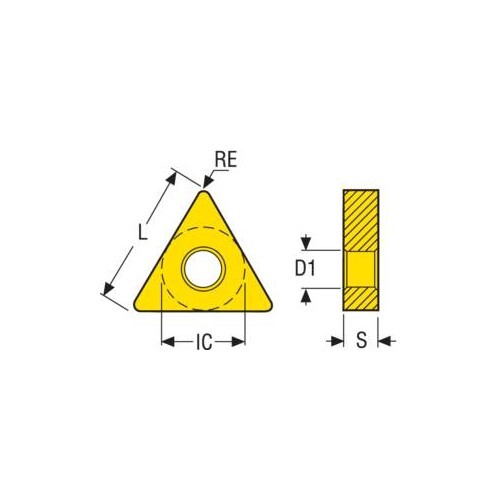

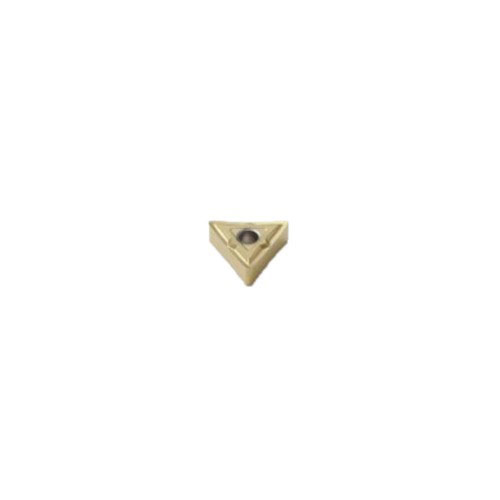

Turning Insert TNMG Insert Style - MF1 Grade CP500

CP500 Insert Grade

Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
Especially suitable in intermittent cuts.
(Ti, Al)N + TiN.

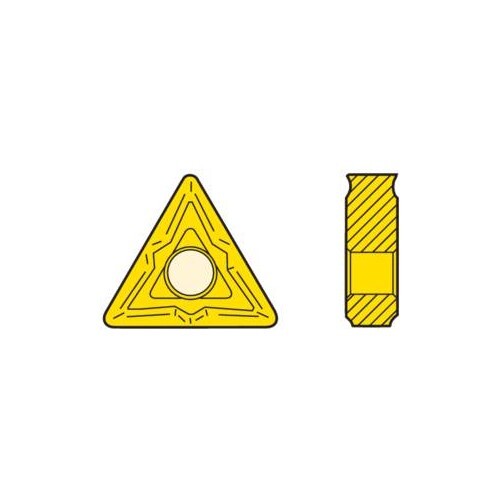

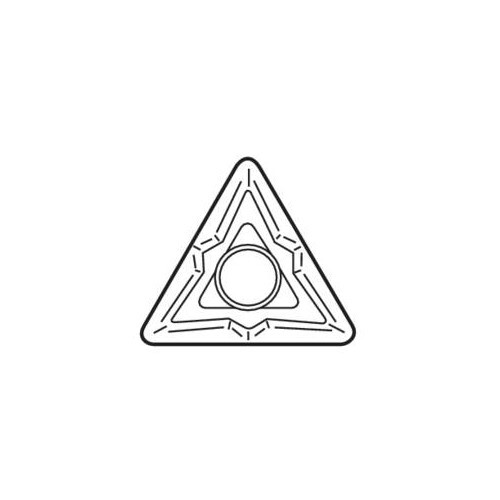

MF1 Chipbreaker Programme

Chipbreaker intended for machining stainless steel, superalloys and titanium alloys.
Type ..GG insert has a sharp, precision ground edge.
Type ..MG insert has a lightly honed cutting edge for increased strength.
MF1 is intended for use in semi-finishing and finishing applications.
Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–3,5 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
