Turning Insert TNMG Insert Style - UX Grade TP2501 - SECO

Description

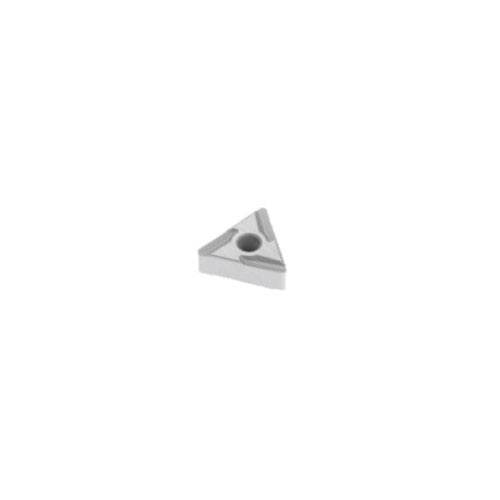

Turning Insert TNMG Insert Style - UX Grade TP2501

T shape code.
G insert type, with hole and chipbreaker on both faces
TP2501 insert grade.

TP2501 Insert Grade

Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

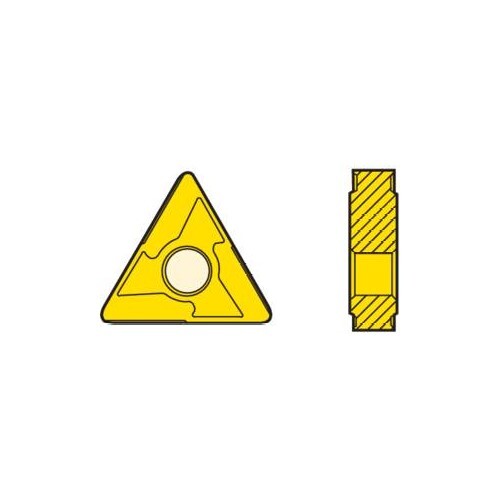

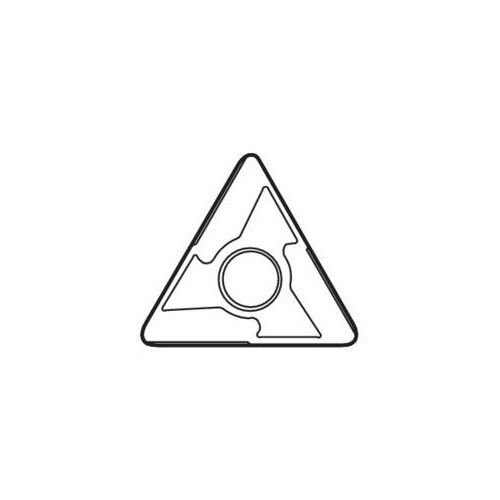

UX Chipbreaker Programme

Chipbreaker for negative inserts. Positive cutting rake with a sharp edge.
Low cutting force. Suitable for slim components.
Indicative machining range: f = 0,2–0,4 mm/rev, ap =1,0–6,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0117895

Brand Seco

Model Number 02960685

Barcode Number 60685029001003

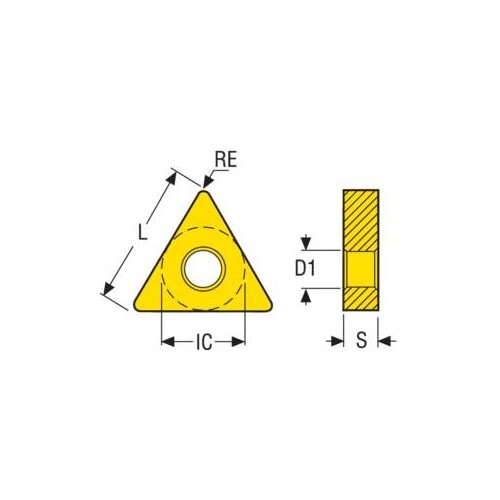

Designation TNMG160404L-UX TP2501

Grade TP2501

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 6

Insert Hand (IH) Left

Cutting Edge Effective Length (LE) mm 7

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 0.4

Insert Seat Size Code (SSC) 16

Insert Shape Code (SC) T

Inscribed Circle Diameter (IC) mm 9.53

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 3.8

Insert Included Angle (epsr) Deg 60.0 deg

Theoretical Cutting Edge Length (L) mm 16.5

Chipbreaker Programme UX

Type Turning Insert
Insert Grade Grade TP2501
Insert Style TNMG
