Description

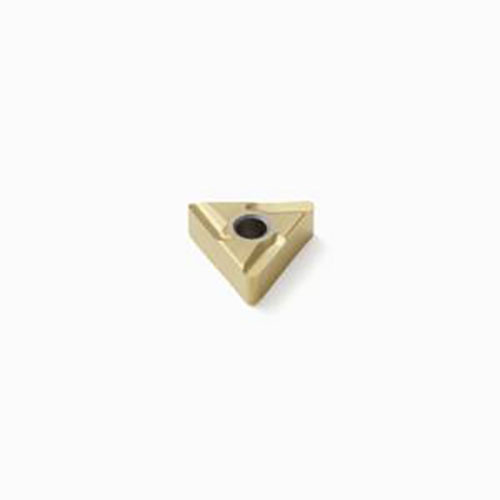

Turning Insert TNMG Insert Style - UX Grade TS2500

T shape code.
G insert type, with hole and chipbreaker on both faces
TS2500 insert grade.

TS2500 Insert Grade

Relatively hard micrograin grade for machining of superalloys and titanium in roughing applications and due to its design also applicable in a wide range of materials such as stainless steel.
(Ti, Al)N + TiN.

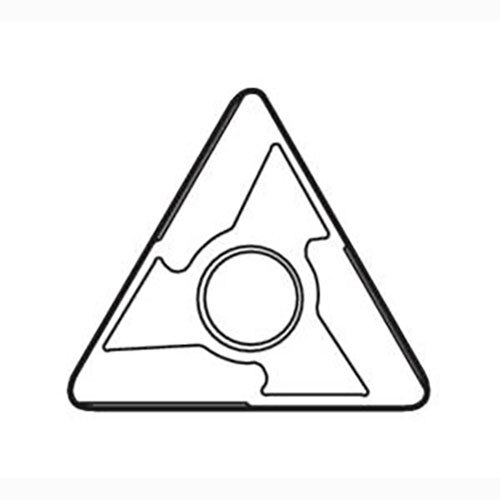

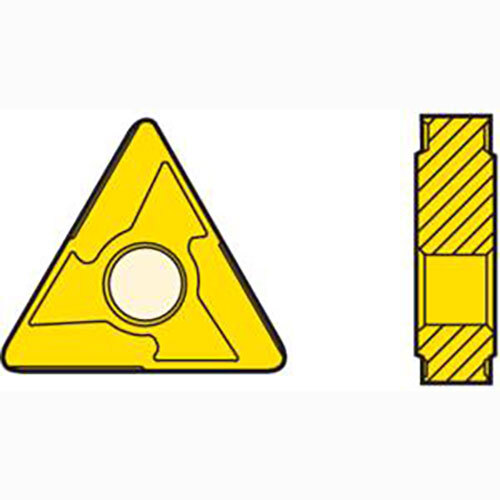

UX Chipbreaker Programme

Chipbreaker for negative inserts. Positive cutting rake with a sharp edge.
Low cutting force. Suitable for slim components.
Indicative machining range: f = 0,2–0,4 mm/rev, ap =1,0–6,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0118348

Brand Seco

Model Number 02615975

Barcode Number 15975026001008

Designation TNMG160404L-UX TS2500

Grade TS2500

Grade Type Carbide PVD

Cutting Edge Count (CEDC) 6

Insert Hand (IH) Left

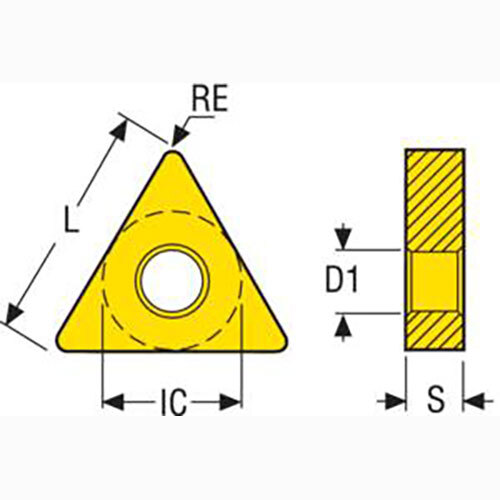

Cutting Edge Effective Length (LE) mm 7

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 0.4

Insert Seat Size Code (SSC) 16

Insert Shape Code (SC) T

Inscribed Circle Diameter (IC) mm 9.53

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 3.8

Insert Included Angle (epsr) Deg 60.0 deg

Theoretical Cutting Edge Length (L) mm 16.5

Chipbreaker Programme UX

Type Turning Insert
Insert Grade Grade TS2500
Insert Style TNMG
