Description

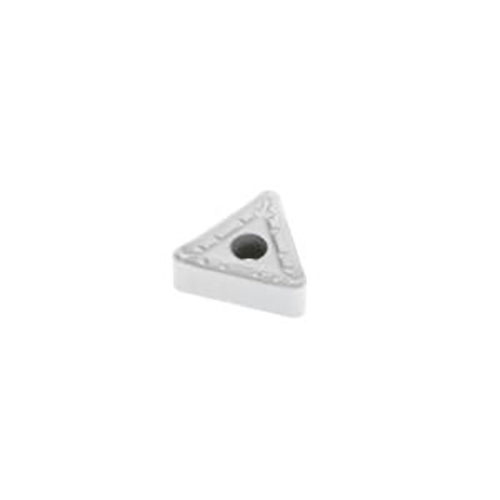

Turning Insert TNMM Insert Style - R4 Grade TP2501

  • T shape code.
  • M insert type, with hole and chipbreaker on one face only.
  • TP2501 insert grade.

TP2501 Insert Grade

  • Duratomic® grade.
  • Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steel as well as many stainless steel and cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R4 Chipbreaker Programme

  • Chipbreaker for single-sided inserts. It has a positive cutting edge which gives low cutting forces.
  • Indicative machining range: f = 0,2–0,6 mm/rev, ap = 2–10 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0117904
  • Brand Seco
  • Model Number 02960605
  • Barcode Number 60605029001001
  • Designation TNMM160408-R4 TP2501
  • Grade TP2501
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 3
  • Insert Hand (IH) Neutral
  • Cutting Edge Effective Length (LE) mm 14.5
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Insert Seat Size Code (SSC) 16
  • Insert Shape Code (SC) T
  • Inscribed Circle Diameter (IC) mm 9.53
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 3.8
  • Insert Included Angle (epsr) Deg 60.0 deg
  • Theoretical Cutting Edge Length (L) mm 16.5
  • Chipbreaker Programme R4
  • Type Turning Insert
  • Insert Grade Grade TP2501
  • Insert Style TNMM

Video

SKU: A0117904

Seco Turning Insert T Shape Code 4.76 x 0.8 x 9.53mm M Insert Type - R4 Grade TP2501 ± 0.13/± 0.05mm Tolerance TNMM160408-R4,TP2501 - Pack of 10

Turning Insert TNMM Insert Style - R4 Grade TP2501

$200.20
