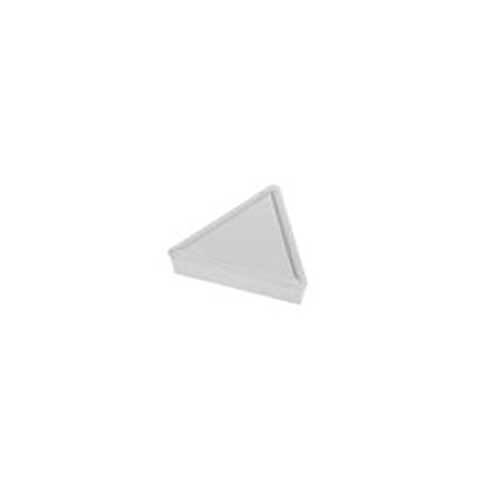

Turning Insert TP1501 Grade (TPMR) - SECO

Description

Turning Insert TP1501 Grade (TPMR)

TP1501 grade.
T, Insert Shape Code (SC).
16, Insert Seat Size Code (SSC).

About TP1501Grade

Carbide CVD.
Duratomic® technology coated grade.
Highly heat and wear-resistant grade extremely well suited for the productive general turning of steels and a useful backup in other material groups.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
Supporting inserts of different shapes, sizes, and thicknesses.
We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0121963

Brand Seco

Model Number 02960691

Barcode Number 60691029001004

Designation TPMR160304-F1,TP1501

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 3

Insert Hand (IH) Neutral

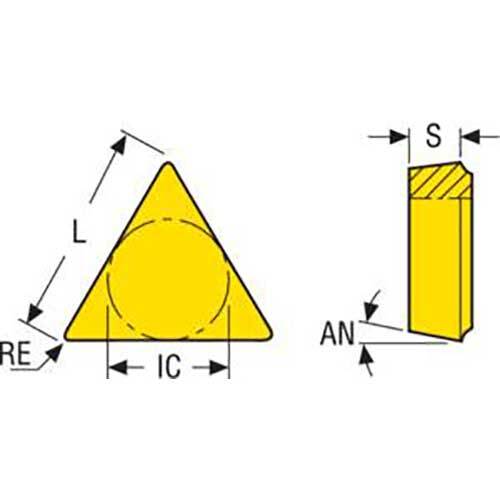

Cutting Edge Effective Length (LE) mm 16.1

Insert Thickness (S) mm 3.18

Corner Radius (RE) mm 0.4

Insert Seat Size Code (SSC) 16

Insert Shape Code (SC) T

Inscribed Circle Diameter (IC) mm 9.52

Clearance Angle Major (an) Deg 11.0 deg

Insert Included Angle (epsr) Deg 60.0 deg

Theoretical Cutting Edge Length (L) mm 16.5

Type Turning Insert
Grade TP1501
Insert Hand (IH) Neutral
Insert Shape Code (SC) T
