Description

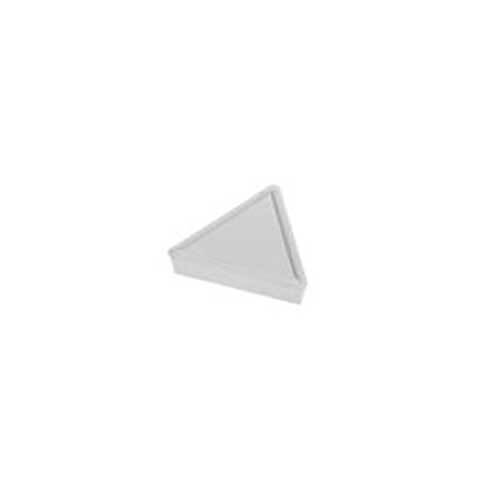

Turning Insert TP2501 Grade (TPMR)

TP2501 grade.
T, Insert Shape Code (SC).
11, Insert Seat Size Code (SSC).

About TP2501 Grade

Carbide CVD.
Duratomic® technology coated grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
Supporting inserts of different shapes, sizes, and thicknesses.
We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0121983

Brand Seco

Model Number 02960695

Barcode Number 60695029001002

Designation TPMR110304-F1,TP2501

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 3

Insert Hand (IH) Neutral

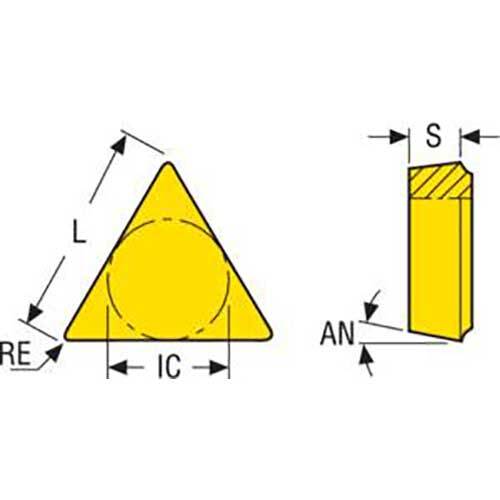

Cutting Edge Effective Length (LE) mm 10.6

Insert Thickness (S) mm 3.18

Corner Radius (RE) mm 0.4

Insert Seat Size Code (SSC) 11

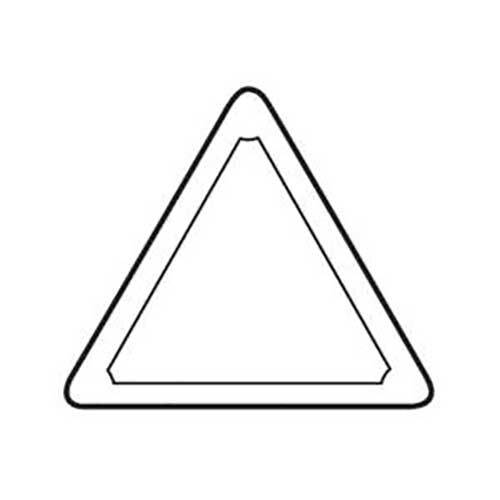

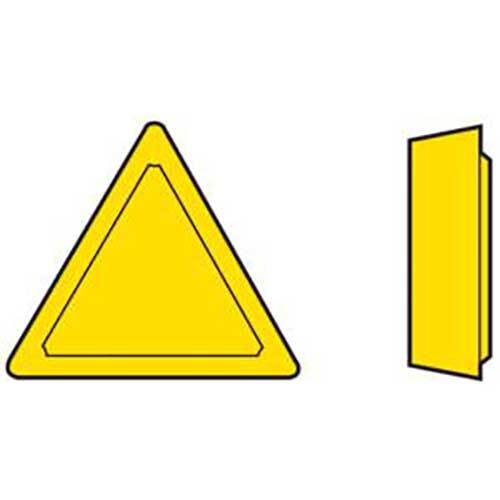

Insert Shape Code (SC) T

Inscribed Circle Diameter (IC) mm 6.35

Clearance Angle Major (an) Deg 11.0 deg

Insert Included Angle (epsr) Deg 60.0 deg

Theoretical Cutting Edge Length (L) mm 11

Type Turning Insert
Grade TP2501
Insert Hand (IH) Neutral
Insert Shape Code (SC) T
