Turning Insert TP40 Grade (TPMR) - SECO

Description

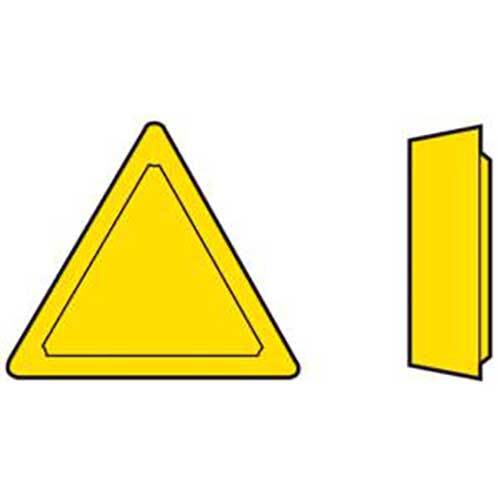

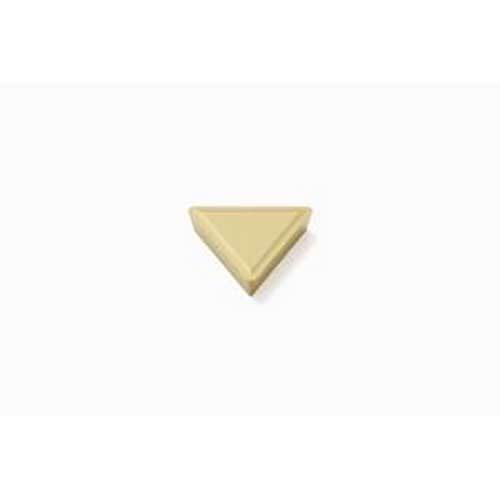

Turning Insert TP40 Grade (TPMR)

TP40 grade.

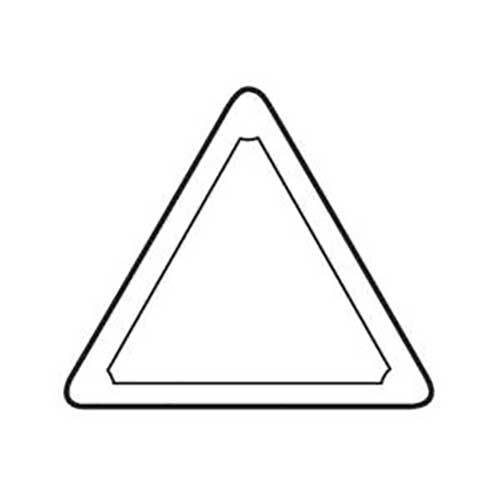

T, Insert Shape Code (SC).
11, Insert Seat Size Code (SSC).

About TP40 Grade

Carbide CVD.
The universal grade for extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings.
TiC/Ti(C,N) + TiN.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
Supporting inserts of different shapes, sizes, and thicknesses.
We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0122002

Brand Seco

Model Number 74018947

Barcode Number 18947740001005

Designation TPMR110304-F1,TP40

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 3

Insert Hand (IH) Neutral

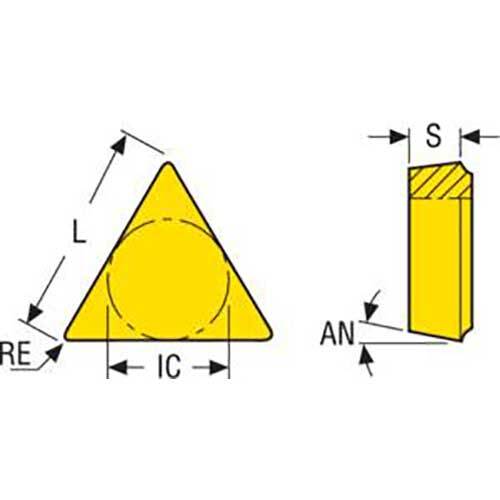

Cutting Edge Effective Length (LE) mm 10.6

Insert Thickness (S) mm 3.18

Corner Radius (RE) mm 0.4

Insert Seat Size Code (SSC) 11

Insert Shape Code (SC) T

Inscribed Circle Diameter (IC) mm 6.35

Clearance Angle Major (an) Deg 11.0 deg

Insert Included Angle (epsr) Deg 60.0 deg

Theoretical Cutting Edge Length (L) mm 11

Type Turning Insert
Grade TP40
Insert Hand (IH) Neutral
Insert Shape Code (SC) T
