Description

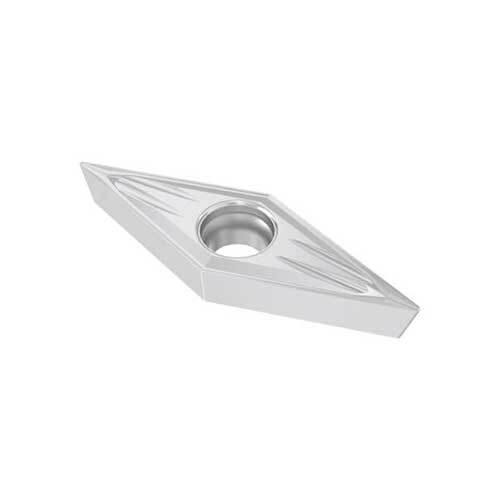

Turning Insert VBMT Insert Style - MF2 5° Grade TM2501

  • V shape code.
  • T Insert Type.
  • 5° insert side clearance angles.

TM2501 Insert Grade

  • Duratomic® grade.
  • A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.
  • First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

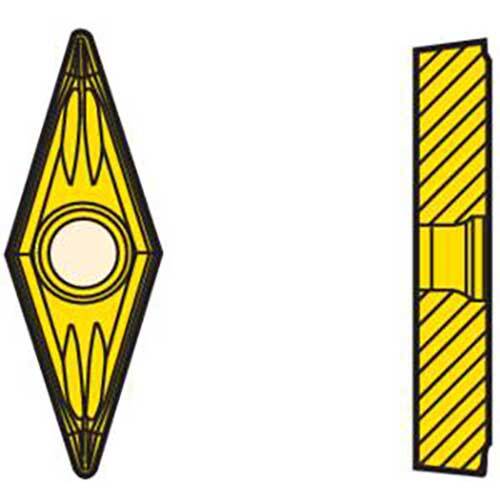

MF2 Chipbreaker Programme

  • A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts.
  • Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring.
  • Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158483
  • Brand Seco
  • Model Number 03276630
  • Net Weight (kg) 0.008
  • Designation VBMT160408-MF2 TM2501
  • Cutting Edge Count (CEDC) 2

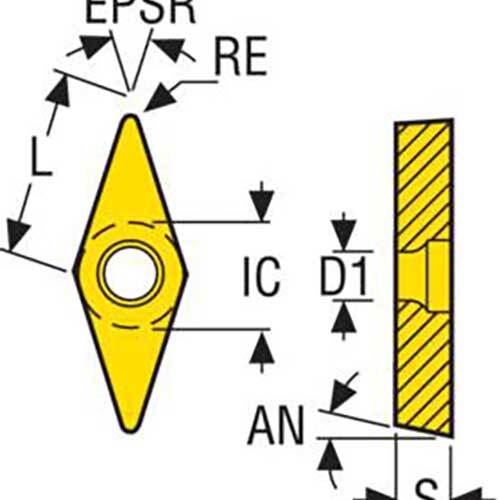

  • Insert Included Angle (EPSR) 35.0 deg
  • Insert Hand (IH) Neutral
  • Cutting Edge Effective Length (LE) mm 14.63
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Inscribed Circle Diameter (IC) mm 9.53
  • Clearance Angle Major (an) Deg 5.0 deg
  • Fixing Hole Diameter (d1) Mm 4.5
  • Theoretical Cutting Edge Length (L) mm 16.61
  • Chip Breaker Manufacturers Designation (CBMD) MF2
  • Insert Seat Size Code (SSC) mm 16
  • Type Turning Insert
  • Grade TM2501
  • Grade Type Carbide CVD
SKU: A0158483

Seco Turning Insert V Shape Code 4.76 x 0.8 x 9.53mm T Insert Type - MF2 5° Grade TM2501 VBMT160408-MF2 Pack of 5

Turning Insert VBMT Insert Style - MF2 5° Grade TM2501

$147.29
